5-7. Bike Sharing Demand

데이터 클렌징 및 가공

import numpy as np
import pandas as pd
import seaborn as sns
import matplotlib.pyplot as plt
%matplotlib inline

import warnings
warnings.filterwarnings("ignore", category=RuntimeWarning)

bike_df = pd.read_csv('./bike_train.csv')
print(bike_df.shape)
bike_df.head(3)

# (10886, 12)

	datetime	season	holiday	workingday	weather	temp	atemp	humidity	windspeed	casual	registered	count
0	2011-01-01 00:00:00	1	0	0	1	9.84	14.395	81	0.0	3	13	16
1	2011-01-01 01:00:00	1	0	0	1	9.02	13.635	80	0.0	8	32	40
2	2011-01-01 02:00:00	1	0	0	1	9.02	13.635	80	0.0	5	27	32

datetime: hourly date + timestamp
season: 1 = 봄, 2 = 여름, 3 = 가을, 4 = 겨울
holiday: 1 = 토, 일요일의 주말을 제외한 국경일 등의 휴일, 0 = 휴일이 아닌 날
workingday: 1 = 토, 일요일의 주말 및 휴일이 아닌 주중, 0 = 주말 및 휴일
weather:
• 1 = 맑음, 약간 구름 낀 흐림
• 2 = 안개, 안개 + 흐림
• 3 = 가벼운 눈, 가벼운 비 + 천둥
• 4 = 심한 눈/비, 천둥/번개
temp: 온도(섭씨)
atemp: 체감온도(섭씨)
humidity: 상대습도
windspeed: 풍속
casual: 사전에 등록되지 않는 사용자가 대여한 횟수
registered: 사전에 등록된 사용자가 대여한 횟수
count: 대여 횟수



bike_df.info()

<class 'pandas.core.frame.DataFrame'>
RangeIndex: 10886 entries, 0 to 10885
Data columns (total 12 columns):
datetime      10886 non-null object
season        10886 non-null int64
holiday       10886 non-null int64
workingday    10886 non-null int64
weather       10886 non-null int64
temp          10886 non-null float64
atemp         10886 non-null float64
humidity      10886 non-null int64
windspeed     10886 non-null float64
casual        10886 non-null int64
registered    10886 non-null int64
count         10886 non-null int64
dtypes: float64(3), int64(8), object(1)
memory usage: 1020.6+ KB



# 문자열을 datetime 타입으로 변경.
bike_df['datetime'] = bike_df.datetime.apply(pd.to_datetime)
bike_df.info()

<class 'pandas.core.frame.DataFrame'>
RangeIndex: 10886 entries, 0 to 10885
Data columns (total 12 columns):
datetime      10886 non-null datetime64[ns]
season        10886 non-null int64
holiday       10886 non-null int64
workingday    10886 non-null int64
weather       10886 non-null int64
temp          10886 non-null float64
atemp         10886 non-null float64
humidity      10886 non-null int64
windspeed     10886 non-null float64
casual        10886 non-null int64
registered    10886 non-null int64
count         10886 non-null int64
dtypes: datetime64[ns](1), float64(3), int64(8)
memory usage: 1020.6 KB



# datetime 타입에서 년, 월, 일, 시간 추출
bike_df['year'] = bike_df.datetime.apply(lambda x : x.year)
bike_df['month'] = bike_df.datetime.apply(lambda x : x.month)
bike_df['day'] = bike_df.datetime.apply(lambda x : x.day)
bike_df['hour'] = bike_df.datetime.apply(lambda x: x.hour)
print(bike_df.info())
bike_df.head(3)


<class 'pandas.core.frame.DataFrame'>
RangeIndex: 10886 entries, 0 to 10885
Data columns (total 16 columns):
datetime      10886 non-null datetime64[ns]
season        10886 non-null int64
holiday       10886 non-null int64
workingday    10886 non-null int64
weather       10886 non-null int64
temp          10886 non-null float64
atemp         10886 non-null float64
humidity      10886 non-null int64
windspeed     10886 non-null float64
casual        10886 non-null int64
registered    10886 non-null int64
count         10886 non-null int64
year          10886 non-null int64
month         10886 non-null int64
day           10886 non-null int64
hour          10886 non-null int64
dtypes: datetime64[ns](1), float64(3), int64(12)
memory usage: 1.3 MB
None

	datetime	season	holiday	workingday	weather	temp	atemp	humidity	windspeed	casual	registered	count	year	month	day	hour
0	2011-01-01 00:00:00	1	0	0	1	9.84	14.395	81	0.0	3	13	16	2011	1	1	0
1	2011-01-01 01:00:00	1	0	0	1	9.02	13.635	80	0.0	8	32	40	2011	1	1	1
2	2011-01-01 02:00:00	1	0	0	1	9.02	13.635	80	0.0	5	27	32	2011	1	1	2



drop_columns = ['datetime','casual','registered']
bike_df.drop(drop_columns, axis=1,inplace=True)



로그 변환, 피처 인코딩, 모델 학습/예측/평가

from sklearn.metrics import mean_squared_error, mean_absolute_error

# log 값 변환 시 언더플로우 영향으로 log() 가 아닌 log1p() 를 이용하여 RMSLE 계산
def rmsle(y, pred):
    log_y = np.log1p(y)
    log_pred = np.log1p(pred)
    squared_error = (log_y - log_pred) ** 2
    rmsle = np.sqrt(np.mean(squared_error))
    return rmsle

# 사이킷런의 mean_square_error() 를 이용하여 RMSE 계산
def rmse(y,pred):
    return np.sqrt(mean_squared_error(y,pred))

# 책에서는 mean_absolute_error()를 MSE로 잘못 기재함.
# MAE, RMSE, RMSLE 를 모두 계산
def evaluate_regr(y,pred):
    rmsle_val = rmsle(y,pred)
    rmse_val = rmse(y,pred)
    # MAE 는 scikit learn의 mean_absolute_error() 로 계산
    mae_val = mean_absolute_error(y,pred)
    print('RMSLE: {0:.3f}, RMSE: {1:.3F}, MAE: {2:.3F}'.format(rmsle_val, rmse_val, mae_val))



from sklearn.model_selection import train_test_split , GridSearchCV
from sklearn.linear_model import LinearRegression , Ridge , Lasso

y_target = bike_df['count']
X_features = bike_df.drop(['count'],axis=1,inplace=False)

X_train, X_test, y_train, y_test = train_test_split(X_features, y_target, test_size=0.3, random_state=0)

lr_reg = LinearRegression()
lr_reg.fit(X_train, y_train)
pred = lr_reg.predict(X_test)

evaluate_regr(y_test ,pred)

# RMSLE: 1.165, RMSE: 140.900, MAE: 105.924



def get_top_error_data(y_test, pred, n_tops = 5):
    # DataFrame에 컬럼들로 실제 대여횟수(count)와 예측 값을 서로 비교 할 수 있도록 생성.
    result_df = pd.DataFrame(y_test.values, columns=['real_count'])
    result_df['predicted_count']= np.round(pred)
    result_df['diff'] = np.abs(result_df['real_count'] - result_df['predicted_count'])
    # 예측값과 실제값이 가장 큰 데이터 순으로 출력.
    print(result_df.sort_values('diff', ascending=False)[:n_tops])

get_top_error_data(y_test,pred,n_tops=20)



     real_count  predicted_count   diff
1618         890            322.0  568.0
3151         798            241.0  557.0
966          884            327.0  557.0
412          745            194.0  551.0
2817         856            310.0  546.0
2277         813            267.0  546.0
2314         766            222.0  544.0
454          721            177.0  544.0
1003         713            171.0  542.0
2394         684            142.0  542.0
1181         891            357.0  534.0
1379         745            212.0  533.0
2003         770            241.0  529.0
1029         901            378.0  523.0
3227         724            202.0  522.0
1038         873            353.0  520.0
3197         694            176.0  518.0
507          688            174.0  514.0
637          900            393.0  507.0
87           594             95.0  499.0

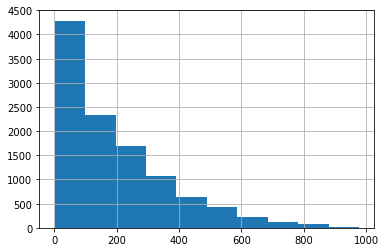

y_target.hist()



y_log_transform = np.log1p(y_target)
y_log_transform.hist()



# 타겟 컬럼인 count 값을 log1p 로 Log 변환
y_target_log = np.log1p(y_target)

# 로그 변환된 y_target_log를 반영하여 학습/테스트 데이터 셋 분할
X_train, X_test, y_train, y_test = train_test_split(X_features, y_target_log, test_size=0.3, random_state=0)
lr_reg = LinearRegression()
lr_reg.fit(X_train, y_train)
pred = lr_reg.predict(X_test)

# 테스트 데이터 셋의 Target 값은 Log 변환되었으므로 다시 expm1를 이용하여 원래 scale로 변환
y_test_exp = np.expm1(y_test)

# 예측 값 역시 Log 변환된 타겟 기반으로 학습되어 예측되었으므로 다시 exmpl으로 scale변환
pred_exp = np.expm1(pred)

evaluate_regr(y_test_exp ,pred_exp)

# RMSLE: 1.017, RMSE: 162.594, MAE: 109.286

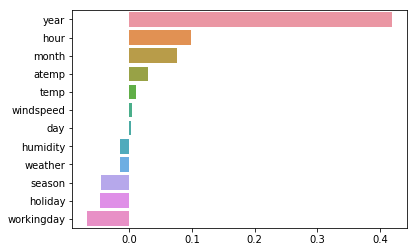

coef = pd.Series(lr_reg.coef_, index=X_features.columns)
coef_sort = coef.sort_values(ascending=False)
sns.barplot(x=coef_sort.values, y=coef_sort.index)



# 'year','month','hour','season','weather' feature들을 One Hot Encoding
X_features_ohe = pd.get_dummies(X_features, columns=['year','month','hour', 'holiday',
                                              'workingday','season','weather'])



# 원-핫 인코딩이 적용된 feature 데이터 세트 기반으로 학습/예측 데이터 분할.
X_train, X_test, y_train, y_test = train_test_split(X_features_ohe, y_target_log,
                                                    test_size=0.3, random_state=0)

# 모델과 학습/테스트 데이터 셋을 입력하면 성능 평가 수치를 반환
def get_model_predict(model, X_train, X_test, y_train, y_test, is_expm1=False):
    model.fit(X_train, y_train)
    pred = model.predict(X_test)
    if is_expm1 :
        y_test = np.expm1(y_test)
        pred = np.expm1(pred)
    print('###',model.__class__.__name__,'###')
    evaluate_regr(y_test, pred)
# end of function get_model_predict

# model 별로 평가 수행
lr_reg = LinearRegression()
ridge_reg = Ridge(alpha=10)
lasso_reg = Lasso(alpha=0.01)

for model in [lr_reg, ridge_reg, lasso_reg]:
    get_model_predict(model,X_train, X_test, y_train, y_test,is_expm1=True)


### LinearRegression ###
RMSLE: 0.589, RMSE: 97.483, MAE: 63.106
### Ridge ###
RMSLE: 0.589, RMSE: 98.407, MAE: 63.648
### Lasso ###
RMSLE: 0.634, RMSE: 113.031, MAE: 72.658



coef = pd.Series(lr_reg.coef_ , index=X_features_ohe.columns)
coef_sort = coef.sort_values(ascending=False)[:10]
sns.barplot(x=coef_sort.values , y=coef_sort.index)



from sklearn.ensemble import RandomForestRegressor, GradientBoostingRegressor
from xgboost import XGBRegressor
from lightgbm import LGBMRegressor


# 랜덤 포레스트, GBM, XGBoost, LightGBM model 별로 평가 수행
rf_reg = RandomForestRegressor(n_estimators=500)
gbm_reg = GradientBoostingRegressor(n_estimators=500)
xgb_reg = XGBRegressor(n_estimators=500)
lgbm_reg = LGBMRegressor(n_estimators=500)

for model in [rf_reg, gbm_reg, xgb_reg, lgbm_reg]:
    get_model_predict(model,X_train, X_test, y_train, y_test,is_expm1=True)



### RandomForestRegressor ###
RMSLE: 0.353, RMSE: 50.828, MAE: 31.537
### GradientBoostingRegressor ###
RMSLE: 0.340, RMSE: 55.761, MAE: 34.333
### XGBRegressor ###
RMSLE: 0.346, RMSE: 56.474, MAE: 34.917
### LGBMRegressor ###
RMSLE: 0.316, RMSE: 46.473, MAE: 28.777
