Computer Vision Footprint
1998 - LeNet 5
2012 - AlexNet
- Gradient vanishin문제를 해결하는 ReLU를 사용
- LRN 사용 안했음
- Overlapping Pooling(영향력이 크진 않음)
- Dropout(Overfitting 방지)
2013 - ZFNet
- AlexNet을 Visualization통해 insight를 제공
- HyperParameter tuning 방법론 제시
- Network in Network
- 1x1 Convolution 도입 (1. 차원 조절 2. non-linear 특성 부여 3. fully connected 처럼 사용)
- Flatten 대신 사용하는 방법인 Global Average Pooling 도입
- 같은 형태를 반복하고 겹쳐서 사용하는 Stacking 도입
2014 - GoogLeNet v1 (1등)
- 1x1 convolution 활용
- Inception module stacking
- Global average pooling 활용
- VGG (2등)
2015 - ResNet
- 최초로 인간을 뛰어 넘는 성능을 보여준 알고리즘 - 잔차(Residual)을 최소로 하는 방향으로 학습
- Batch Normalization 활용
2016 - GoogLeNet v4
Deep Residual Learning for Image Recognition
ResNet은 인간을 뛰어넘은 첫번째 모델
Residual => 실제값 - 예측값 (잔차)

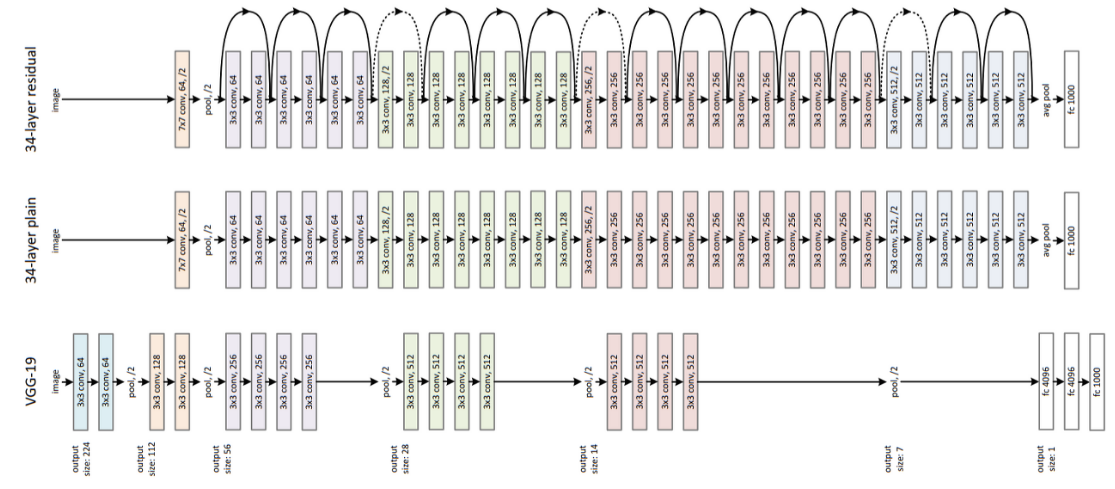

차원이 증가할 때 점선 화살표로 표시했다
Skip connection
deep architectures에서 short skip connections은 하나의 layer의 output을 몇 개의 layer를 건너뛰고 다음 layer의 input에 추가하는 것
import tensorflow as tf
import numpy as np
import matplotlib.pyplot as plt
import pandas as pd
input_ = tf.keras.Input((32,32,3))
x = tf.keras.layers.Conv2D(2,3, padding='same')(input_)
y = tf.keras.layers.Conv2D(2,3, padding='same')(input_)
z = tf.keras.layers.Concatenate()([x,y]) # 구조 자체를 더해준다
model = tf.keras.models.Model(input_, z)
model.summary()
# Model: "model"
# __________________________________________________________________________________________________
# Layer (type) Output Shape Param # Connected to
# ==================================================================================================
# input_1 (InputLayer) [(None, 32, 32, 3)] 0
# __________________________________________________________________________________________________
# conv2d (Conv2D) (None, 32, 32, 2) 56 input_1[0][0]
# __________________________________________________________________________________________________
# conv2d_1 (Conv2D) (None, 32, 32, 2) 56 input_1[0][0]
# __________________________________________________________________________________________________
# concatenate (Concatenate) (None, 32, 32, 4) 0 conv2d[0][0]
# conv2d_1[0][0]
# ==================================================================================================
# Total params: 112
# Trainable params: 112
# Non-trainable params: 0
# __________________________________________________________________________________________________# ReNet에서 구현하는 방식 (Add)
input_ = tf.keras.Input((32,32,3))
x = tf.keras.layers.Conv2D(2,3, padding='same')(input_)
y = tf.keras.layers.Conv2D(2,3, padding='same')(input_)
z = tf.keras.layers.Add()([x,y]) # 값을 더해준다 (element wise)
model = tf.keras.models.Model(input_, z)
model.summary()
# Model: "model_1"
# __________________________________________________________________________________________________
# Layer (type) Output Shape Param # Connected to
# ==================================================================================================
# input_2 (InputLayer) [(None, 32, 32, 3)] 0
# __________________________________________________________________________________________________
# conv2d_2 (Conv2D) (None, 32, 32, 2) 56 input_2[0][0]
# __________________________________________________________________________________________________
# conv2d_3 (Conv2D) (None, 32, 32, 2) 56 input_2[0][0]
# __________________________________________________________________________________________________
# add (Add) (None, 32, 32, 2) 0 conv2d_2[0][0]
# conv2d_3[0][0]
# ==================================================================================================
# Total params: 112
# Trainable params: 112
# Non-trainable params: 0
# __________________________________________________________________________________________________
실전 예제
(X_train, y_train), (X_test, y_test) = tf.keras.datasets.cifar10.load_data()

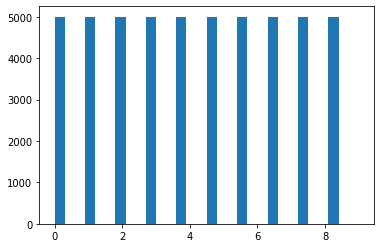

np.unique(y_train, return_counts=True)
# (array([0, 1, 2, 3, 4, 5, 6, 7, 8, 9], dtype=uint8),
# array([5000, 5000, 5000, 5000, 5000, 5000, 5000, 5000, 5000, 5000]))plt.hist(y_train, width=0.3) # 데이터 클래스가 균등한지 확인
# (array([5000., 5000., 5000., 5000., 5000., 5000., 5000., 5000., 5000., 5000.]),
# array([0. , 0.9, 1.8, 2.7, 3.6, 4.5, 5.4, 6.3, 7.2, 8.1, 9. ]),
# <a list of 10 Patch objects>)
# 비율과 크기가 다르다 => 전통적인 ml방식으로는 해결할 수 없다 => CNN으로 해결해야 한다

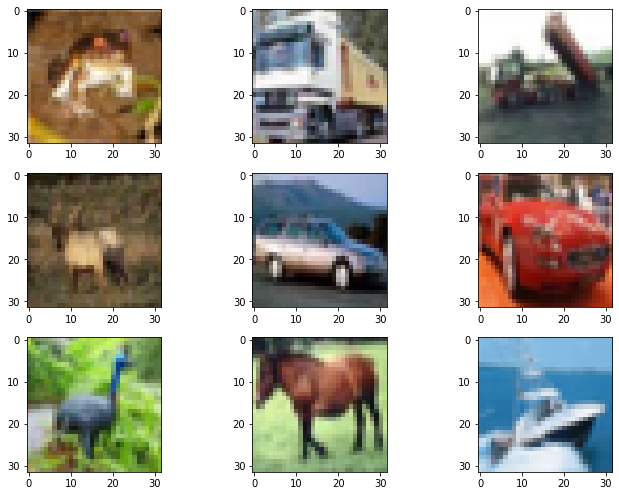

rows = 3
cols = 3
axes=[]
fig=plt.figure(figsize=(10,7))
for a in range(rows*cols):
axes.append(fig.add_subplot(rows, cols, a+1))
plt.imshow(X_train[a])
fig.tight_layout()
plt.show()
np.unique(y_test, return_counts=True)
# (array([0, 1, 2, 3, 4, 5, 6, 7, 8, 9], dtype=uint8),
# array([1000, 1000, 1000, 1000, 1000, 1000, 1000, 1000, 1000, 1000]))

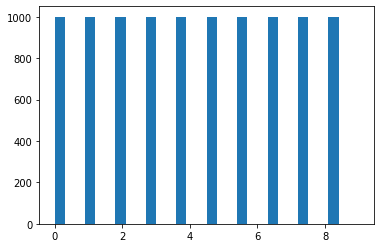

plt.hist(y_test, width=0.3)
# (array([1000., 1000., 1000., 1000., 1000., 1000., 1000., 1000., 1000., 1000.]),
# array([0. , 0.9, 1.8, 2.7, 3.6, 4.5, 5.4, 6.3, 7.2, 8.1, 9. ]),
# <a list of 10 Patch objects>)
plt.imshow(X_test[3]) # data image크기가 작기 때문에 deep한 layer를 사용하기 힘들다
(X_train, y_train), (X_test, y_test) = tf.keras.datasets.cifar10.load_data()
X_train = X_train / 255
X_test = X_test / 255
# layer를 구성하는 것은 만드는 사람에 따라 달라질 수 있다
input_ = tf.keras.Input((32,32,3))
x = tf.keras.layers.Conv2D(32,3)(input_)
# x = tf.keras.layers.BatchNormalization()(x)
x = tf.keras.layers.ReLU()(x)
x = tf.keras.layers.MaxPool2D(2)(x) # 2x2 stride 2
x = tf.keras.layers.Conv2D(64,3)(x)
x = tf.keras.layers.ReLU()(x)
x = tf.keras.layers.MaxPool2D(2)(x)
x = tf.keras.layers.Conv2D(64,3)(x)
x = tf.keras.layers.ReLU()(x)
x = tf.keras.layers.Flatten()(x) # 이미지 크기가 작기때문에 flatten해도 상관없다
x = tf.keras.layers.Dense(512)(x)
x = tf.keras.layers.ReLU()(x)
x = tf.keras.layers.Dense(10)(x)
model = tf.keras.models.Model(input_, x)
model.summary()
# Model: "model"
# _________________________________________________________________
# Layer (type) Output Shape Param #
# =================================================================
# input_1 (InputLayer) [(None, 32, 32, 3)] 0
# _________________________________________________________________
# conv2d (Conv2D) (None, 30, 30, 32) 896
# _________________________________________________________________
# re_lu (ReLU) (None, 30, 30, 32) 0
# _________________________________________________________________
# max_pooling2d (MaxPooling2D) (None, 15, 15, 32) 0
# _________________________________________________________________
# conv2d_1 (Conv2D) (None, 13, 13, 64) 18496
# _________________________________________________________________
# re_lu_1 (ReLU) (None, 13, 13, 64) 0
# _________________________________________________________________
# max_pooling2d_1 (MaxPooling2 (None, 6, 6, 64) 0
# _________________________________________________________________
# conv2d_2 (Conv2D) (None, 4, 4, 64) 36928
# _________________________________________________________________
# re_lu_2 (ReLU) (None, 4, 4, 64) 0
# _________________________________________________________________
# flatten (Flatten) (None, 1024) 0
# _________________________________________________________________
# dense (Dense) (None, 512) 524800
# _________________________________________________________________
# re_lu_3 (ReLU) (None, 512) 0
# _________________________________________________________________
# dense_1 (Dense) (None, 10) 5130
# =================================================================
# Total params: 586,250
# Trainable params: 586,250
# Non-trainable params: 0
# _________________________________________________________________# 사용자가 해석한 값이 아닌 raw값 그대로 loss를 구한다 /
# Numerical stability가 더 좋기 때문에 거의 차이가 안난다
model.compile(loss=tf.keras.losses.SparseCategoricalCrossentropy(from_logits=True),
optimizer='adam',
metrics=['accuracy'])
history = model.fit(X_train, y_train, epochs=20, validation_data=(X_test, y_test))
# 정규화 했을 때 더 낮은 loss에서 시작한다 그리고 정규화를 했을 때 수렴속도가 빠르다
Epoch 1/20
1563/1563 [==============================] - 14s 8ms/step - loss: 1.4378 - accuracy: 0.4767 - val_loss: 1.1393 - val_accuracy: 0.5892
Epoch 2/20
1563/1563 [==============================] - 12s 8ms/step - loss: 1.0637 - accuracy: 0.6254 - val_loss: 1.0237 - val_accuracy: 0.6401
Epoch 3/20
1563/1563 [==============================] - 12s 8ms/step - loss: 0.8987 - accuracy: 0.6826 - val_loss: 0.9170 - val_accuracy: 0.6825
Epoch 4/20
1563/1563 [==============================] - 12s 8ms/step - loss: 0.7807 - accuracy: 0.7277 - val_loss: 0.8540 - val_accuracy: 0.7036
Epoch 5/20
1563/1563 [==============================] - 12s 8ms/step - loss: 0.6769 - accuracy: 0.7609 - val_loss: 0.8615 - val_accuracy: 0.7131
Epoch 6/20
1563/1563 [==============================] - 12s 8ms/step - loss: 0.5830 - accuracy: 0.7932 - val_loss: 0.8833 - val_accuracy: 0.7151
Epoch 7/20
1563/1563 [==============================] - 12s 8ms/step - loss: 0.4926 - accuracy: 0.8251 - val_loss: 0.9074 - val_accuracy: 0.7179
Epoch 8/20
1563/1563 [==============================] - 12s 8ms/step - loss: 0.4044 - accuracy: 0.8571 - val_loss: 0.9816 - val_accuracy: 0.7117
Epoch 9/20
1563/1563 [==============================] - 12s 8ms/step - loss: 0.3321 - accuracy: 0.8829 - val_loss: 1.0310 - val_accuracy: 0.7151
Epoch 10/20
1563/1563 [==============================] - 12s 8ms/step - loss: 0.2701 - accuracy: 0.9034 - val_loss: 1.2083 - val_accuracy: 0.7054
Epoch 11/20
1563/1563 [==============================] - 12s 8ms/step - loss: 0.2228 - accuracy: 0.9207 - val_loss: 1.3023 - val_accuracy: 0.7059
Epoch 12/20
1563/1563 [==============================] - 12s 8ms/step - loss: 0.1909 - accuracy: 0.9319 - val_loss: 1.4026 - val_accuracy: 0.7109
Epoch 13/20
1563/1563 [==============================] - 12s 8ms/step - loss: 0.1661 - accuracy: 0.9411 - val_loss: 1.6160 - val_accuracy: 0.6998
Epoch 14/20
1563/1563 [==============================] - 12s 8ms/step - loss: 0.1501 - accuracy: 0.9471 - val_loss: 1.5875 - val_accuracy: 0.7062
Epoch 15/20
1563/1563 [==============================] - 12s 8ms/step - loss: 0.1311 - accuracy: 0.9548 - val_loss: 1.8276 - val_accuracy: 0.6951
Epoch 16/20
1563/1563 [==============================] - 12s 8ms/step - loss: 0.1288 - accuracy: 0.9552 - val_loss: 1.8113 - val_accuracy: 0.7016
Epoch 17/20
1563/1563 [==============================] - 12s 8ms/step - loss: 0.1169 - accuracy: 0.9591 - val_loss: 2.0500 - val_accuracy: 0.6922
Epoch 18/20
1563/1563 [==============================] - 12s 8ms/step - loss: 0.1180 - accuracy: 0.9604 - val_loss: 2.0089 - val_accuracy: 0.6998
Epoch 19/20
1563/1563 [==============================] - 12s 8ms/step - loss: 0.1095 - accuracy: 0.9634 - val_loss: 1.9952 - val_accuracy: 0.6968
Epoch 20/20
1563/1563 [==============================] - 12s 8ms/step - loss: 0.1034 - accuracy: 0.9657 - val_loss: 2.0972 - val_accuracy: 0.6938
history = model.fit(X_train, y_train, epochs=20, validation_data=(X_test, y_test))
# 정규화 하지 않았을 때 더 높은 loss에서 시작한다
Epoch 1/20
1563/1563 [==============================] - 19s 8ms/step - loss: 2.0055 - accuracy: 0.3065 - val_loss: 1.5826 - val_accuracy: 0.4172
Epoch 2/20
1563/1563 [==============================] - 12s 8ms/step - loss: 1.4448 - accuracy: 0.4833 - val_loss: 1.3306 - val_accuracy: 0.5283
Epoch 3/20
1563/1563 [==============================] - 12s 8ms/step - loss: 1.2506 - accuracy: 0.5596 - val_loss: 1.2615 - val_accuracy: 0.5648
Epoch 4/20
1563/1563 [==============================] - 12s 8ms/step - loss: 1.1343 - accuracy: 0.6053 - val_loss: 1.2301 - val_accuracy: 0.5752
Epoch 5/20
1563/1563 [==============================] - 12s 8ms/step - loss: 1.0247 - accuracy: 0.6427 - val_loss: 1.1291 - val_accuracy: 0.6128
Epoch 6/20
1563/1563 [==============================] - 12s 8ms/step - loss: 0.9380 - accuracy: 0.6753 - val_loss: 1.2271 - val_accuracy: 0.5985
Epoch 7/20
1563/1563 [==============================] - 12s 8ms/step - loss: 0.8566 - accuracy: 0.7020 - val_loss: 1.1887 - val_accuracy: 0.6037
Epoch 8/20
1563/1563 [==============================] - 12s 8ms/step - loss: 0.7684 - accuracy: 0.7344 - val_loss: 1.2450 - val_accuracy: 0.6161
Epoch 9/20
1563/1563 [==============================] - 12s 8ms/step - loss: 0.6898 - accuracy: 0.7621 - val_loss: 1.3770 - val_accuracy: 0.6004
Epoch 10/20
1563/1563 [==============================] - 12s 8ms/step - loss: 0.6153 - accuracy: 0.7890 - val_loss: 1.4217 - val_accuracy: 0.6172
Epoch 11/20
1563/1563 [==============================] - 12s 8ms/step - loss: 0.5556 - accuracy: 0.8114 - val_loss: 1.4523 - val_accuracy: 0.6202
Epoch 12/20
1563/1563 [==============================] - 12s 8ms/step - loss: 0.5212 - accuracy: 0.8254 - val_loss: 1.6618 - val_accuracy: 0.5982
Epoch 13/20
1563/1563 [==============================] - 12s 8ms/step - loss: 0.4697 - accuracy: 0.8419 - val_loss: 1.7345 - val_accuracy: 0.6087
Epoch 14/20
1563/1563 [==============================] - 12s 8ms/step - loss: 0.4385 - accuracy: 0.8550 - val_loss: 1.9349 - val_accuracy: 0.6040
Epoch 15/20
1563/1563 [==============================] - 12s 8ms/step - loss: 0.4044 - accuracy: 0.8672 - val_loss: 2.1098 - val_accuracy: 0.5947
Epoch 16/20
1563/1563 [==============================] - 12s 7ms/step - loss: 0.3703 - accuracy: 0.8803 - val_loss: 2.3537 - val_accuracy: 0.6007
Epoch 17/20
1563/1563 [==============================] - 12s 8ms/step - loss: 0.3737 - accuracy: 0.8796 - val_loss: 2.4973 - val_accuracy: 0.6003
Epoch 18/20
1563/1563 [==============================] - 12s 7ms/step - loss: 0.3659 - accuracy: 0.8848 - val_loss: 2.5574 - val_accuracy: 0.5830
Epoch 19/20
1563/1563 [==============================] - 12s 7ms/step - loss: 0.3423 - accuracy: 0.8938 - val_loss: 2.4638 - val_accuracy: 0.6007
Epoch 20/20
1563/1563 [==============================] - 12s 8ms/step - loss: 0.3459 - accuracy: 0.8939 - val_loss: 2.6130 - val_accuracy: 0.5853

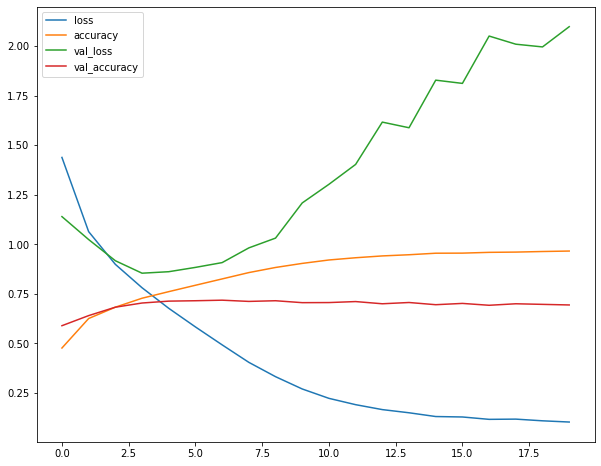

pd.DataFrame(history.history).plot.line(figsize=(10,8)) # validation loss가 증가하는 지점부터 overfitting이 시작된다 (정규화)

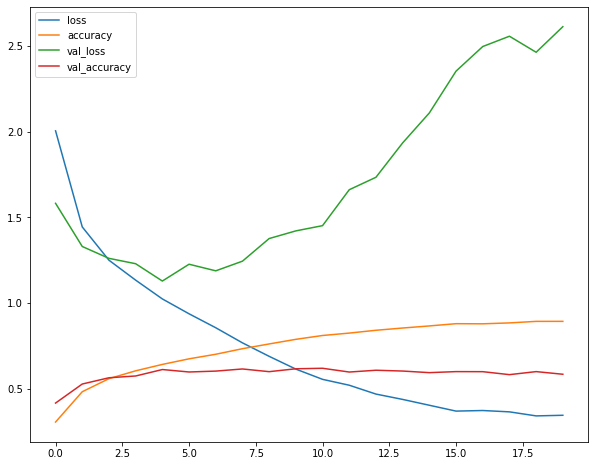

pd.DataFrame(history.history).plot.line(figsize=(10,8)) # validation loss가 증가하는 지점부터 overfitting이 시작된다 (정규화 X)
Flower Datasets
tf.keras.utils.get_file("flower_photos","https://storage.googleapis.com/download.tensorflow.org/example_images/flower_photos.tgz")
data = tf.keras.preprocessing.image_dataset_from_directory('flower_photos/')
# Found 3670 files belonging to 5 classes.
data # tf.data.Dataset
# <BatchDataset shapes: ((None, 256, 256, 3), (None,)), types: (tf.float32, tf.int32)>
idg = tf.keras.preprocessing.image.ImageDataGenerator()
idg.flow_from_directory('flower_photos/') # raw data를 클래스별로 모아 두면 한번에 바꾸는 것을 지원한다 (하나의 array로 만들어줌)
# Found 3670 images belonging to 5 classes.
# <keras.preprocessing.image.DirectoryIterator at 0x7fee7a4b1390>numpy와 tensor
Numpy와 tensor는 서로 호환이 된다
tensor로 사용하면 호환성은 떨어지지만 gpu나 tensorflow 내부의 기능을 극대화 할 수 있다
tf.data.Dataset는 tensor중에서 ml용으로 관리한다
(X_train, y_train), (X_test, y_test) = tf.keras.datasets.cifar10.load_data()tensor data로 만드는 방법
1. from_tensors
2. from_tensor_slices
tf.data.Dataset.from_tensors(X_train) # 데이터 전체를 기반으로 만들어 준다
tf.data.Dataset.from_tensors((X_train,y_train)) # 데이터 전체를 묶어서 관리
# <TensorDataset shapes: ((50000, 32, 32, 3), (50000, 1)), types: (tf.uint8, tf.uint8)>
tf.data.Dataset.from_tensor_slices(X_train) # 데이터 한 개를 기반으로 만들어 준다
tf.data.Dataset.from_tensor_slices((X_train, y_train)) # 데이터 한쌍을 묶어서 관리
# <TensorSliceDataset shapes: ((32, 32, 3), (1,)), types: (tf.uint8, tf.uint8)>
# y_train = tf.keras.utils.to_categorical(y_train)
train = tf.data.Dataset.from_tensor_slices((X_train, y_train)).batch(32)
train_t = tf.data.Dataset.from_tensor_slices((X_train, y_train))
train_t.batch(32)
# <BatchDataset shapes: ((None, 32, 32, 3), (None, 1)), types: (tf.float64, tf.uint8)>
train_t.shuffle(400)
# <ShuffleDataset shapes: ((32, 32, 3), (1,)), types: (tf.float64, tf.uint8)>
# cache : preprocessing 시간이 너무 길어서 줄이고 싶을때 사용
# prefetch : 학습중일때, 데이터 로드시간을 줄이기 위해 미리 메모리에 적재시킴 이때, 괄호안의 숫자는 얼마만큼 적재시킬지에 대한 숫자 / AUTOTUNE는 자동으로
train_t.shuffle(400).cache()
# <CacheDataset shapes: ((32, 32, 3), (1,)), types: (tf.float64, tf.uint8)>
train_t.shuffle(400).cache().prefetch(tf.data.AUTOTUNE)
# <PrefetchDataset shapes: ((32, 32, 3), (1,)), types: (tf.float64, tf.uint8)>
'_GeneratorState' in dir(train) # lazy하게 데이터를 불러온다 => 호출되기 전까지 메모리에 올라가지 않는다
# Truefor i in train.take(2): # 데이터 2개 불러온다
print(i)
# (<tf.Tensor: shape=(32, 32, 32, 3), dtype=float64, numpy=
# array([[[[0.23137255, 0.24313725, 0.24705882],
[0.16862745, 0.18039216, 0.17647059],
[0.19607843, 0.18823529, 0.16862745],
...,
[0.19215686, 0.28235294, 0.17647059],
[0.12156863, 0.2 , 0.11764706],
[0.08235294, 0.15294118, 0.08235294]]]])>, <tf.Tensor: shape=(32, 1), dtype=uint8, numpy=
array([[1],
[3],
[4],
[0],
[3],
[7],
[3],
[3],
[5],
[2],
[2],
[7],
[1],
[1],
[1],
[2],
[2],
[0],
[9],
[5],
[7],
[9],
[2],
[2],
[5],
[2],
[4],
[3],
[1],
[1],
[8],

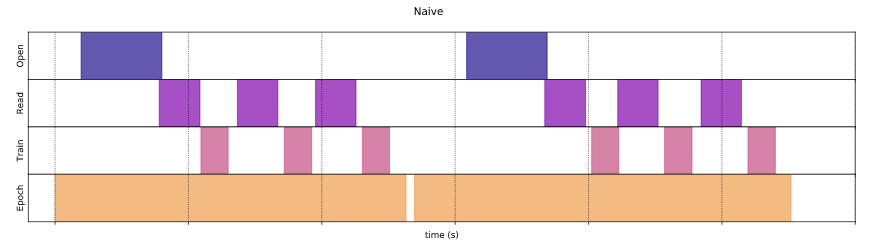

[2]], dtype=uint8)>)Naive

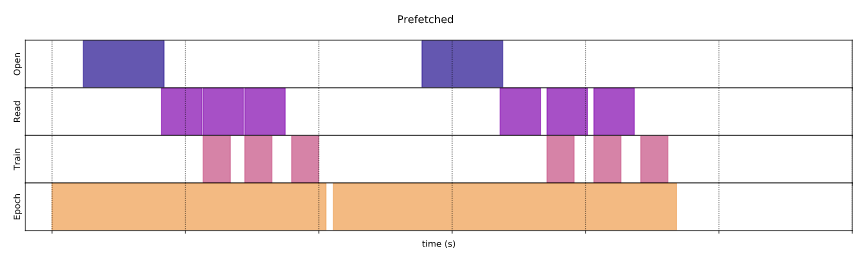

prefetch
tf.data.Dataset을 사용하지 않으면 cpu를 읽고 쓰고하는 것을 각각 할당한다
그런데 cache, prefetch를 사용하면 내부적으로 cpu, gpu를 압축적으로 사용할 수 있도록 처리해준다
따라서 numpy보다 메모리를 효율적으로 사용할 수 있다
input_ = tf.keras.Input((32,32,3))
x = tf.keras.layers.Conv2D(32,3)(input_)
x = tf.keras.layers.ReLU()(x)
x = tf.keras.layers.MaxPool2D(2)(x)
x = tf.keras.layers.Conv2D(64,3)(x)
x = tf.keras.layers.ReLU()(x)
x = tf.keras.layers.MaxPool2D(2)(x)
x = tf.keras.layers.Conv2D(64,3)(x)
x = tf.keras.layers.ReLU()(x)
x = tf.keras.layers.Flatten()(x)
x = tf.keras.layers.Dense(512)(x)
x = tf.keras.layers.ReLU()(x)
x = tf.keras.layers.Dense(10)(x)
model = tf.keras.models.Model(input_, x)
model.compile(loss=tf.keras.losses.SparseCategoricalCrossentropy(from_logits=True),
optimizer='adam',
metrics=['accuracy'])
history = model.fit(train, epochs=10)
# tf.data.Dataset으로 학습을 하면 tensor로 처리하고 내부적인 기능이 최적화되어 사용하기 때문에 훨씬 더 효율적으로 사용할 수 있다 / 메모리 효율이 좋다
Epoch 1/10
1563/1563 [==============================] - 16s 10ms/step - loss: 1.4560 - accuracy: 0.4731
Epoch 2/10
1563/1563 [==============================] - 14s 9ms/step - loss: 1.0674 - accuracy: 0.6208
Epoch 3/10
1563/1563 [==============================] - 12s 8ms/step - loss: 0.8919 - accuracy: 0.6871
Epoch 4/10
1563/1563 [==============================] - 18s 12ms/step - loss: 0.7641 - accuracy: 0.7327
Epoch 5/10
1563/1563 [==============================] - 18s 12ms/step - loss: 0.6630 - accuracy: 0.7666
Epoch 6/10
1563/1563 [==============================] - 15s 10ms/step - loss: 0.5731 - accuracy: 0.7999
Epoch 7/10
1563/1563 [==============================] - 15s 9ms/step - loss: 0.4959 - accuracy: 0.8257
Epoch 8/10
1563/1563 [==============================] - 22s 14ms/step - loss: 0.4299 - accuracy: 0.8476
Epoch 9/10
1563/1563 [==============================] - 25s 16ms/step - loss: 0.3662 - accuracy: 0.8701
Epoch 10/10
1563/1563 [==============================] - 24s 15ms/step - loss: 0.3118 - accuracy: 0.8894data = tf.keras.preprocessing.image_dataset_from_directory('flower_photos/')
# Found 3670 files belonging to 5 classes.plt.imshow(next(iter(data.take(1)))[0][0])
plt.imshow(next(iter(data.take(1)))[0][0]/255)
# 255값으로 나누면 이미지의 특성을 좀 더 반영할 수 있다
tf.keras.utils.image_dataset_from_directory is tf.keras.preprocessing.image_dataset_from_directorys
# True
# 같은 방법이다Data augmentation
Data augmentation은 현재 갖고 있는 데이터를 좀 더 다양하게 만들어 AlexNet에서 처음 도입된 개념이다
AlexNet에서 256x256 이미지를 224x224 크기로 무작위하게 잘라서 데이터의 수를 키웠다
(2048배 뻥튀기 되었다)
일반적으로는 cpu기반으로 연산되지만 batch기반으로 학습될때는 gpu로 연산된다
data = tf.keras.preprocessing.image_dataset_from_directory('flower_photos/')
rescale = tf.keras.layers.experimental.preprocessing.RandomCrop(224,224,3)
# Found 3670 files belonging to 5 classes.
data.map(lambda x,y: (rescale(x), y), num_parallel_calls=tf.data.AUTOTUNE) # num_parallel_calls: 동시에 cpu 몇개 사용할 것인가
# <ParallelMapDataset shapes: ((None, 224, 224, 3), (None,)), types: (tf.float32, tf.int32)>
3670*2048
# 7516160lambda layer
t = tf.constant([[1,2,],[3,4,]])
t
# <tf.Tensor: shape=(2, 2), dtype=int32, numpy=
# array([[1, 2],
# [3, 4]], dtype=int32)>tf.keras.layers.Lambda(lambda x:x+1)(t) # layer안에 함수를 쓴다
# <tf.Tensor: shape=(2, 2), dtype=int32, numpy=
# array([[2, 3],
# [4, 5]], dtype=int32)>rescale = tf.keras.layers.Lambda(lambda x:tf.image.random_crop(x, (224,224,3)))
# data.map(lambda x,y: (rescale(x), y), num_parallel_calls=tf.data.AUTOTUNE)data.map(lambda x,y:(rescale(x)(),y))
# ValueError: in user code:
<ipython-input-81-dc4661f485b7>:1 None *
lambda x,y:(rescale(x)(x),y))
/usr/local/lib/python3.7/dist-packages/keras/engine/base_layer.py:1037 __call__ **
outputs = call_fn(inputs, *args, **kwargs)
/usr/local/lib/python3.7/dist-packages/keras/layers/core.py:903 call
result = self.function(inputs, **kwargs)
<ipython-input-74-6ba6a1285d04>:1 <lambda>
rescale = tf.keras.layers.Lambda(lambda x:tf.image.random_crop(x, (224,224,3)))
/usr/local/lib/python3.7/dist-packages/tensorflow/python/util/dispatch.py:206 wrapper
return target(*args, **kwargs)
/usr/local/lib/python3.7/dist-packages/tensorflow/python/ops/random_ops.py:402 random_crop
math_ops.reduce_all(shape >= size),
/usr/local/lib/python3.7/dist-packages/tensorflow/python/ops/math_ops.py:1817 wrapper
return fn(x, y, *args, **kwargs)
/usr/local/lib/python3.7/dist-packages/tensorflow/python/ops/gen_math_ops.py:4050 greater_equal
"GreaterEqual", x=x, y=y, name=name)
/usr/local/lib/python3.7/dist-packages/tensorflow/python/framework/op_def_library.py:750 _apply_op_helper
attrs=attr_protos, op_def=op_def)
/usr/local/lib/python3.7/dist-packages/tensorflow/python/framework/func_graph.py:601 _create_op_internal
compute_device)
/usr/local/lib/python3.7/dist-packages/tensorflow/python/framework/ops.py:3569 _create_op_internal
op_def=op_def)
/usr/local/lib/python3.7/dist-packages/tensorflow/python/framework/ops.py:2042 __init__
control_input_ops, op_def)
/usr/local/lib/python3.7/dist-packages/tensorflow/python/framework/ops.py:1883 _create_c_op
raise ValueError(str(e))
ValueError: Dimensions must be equal, but are 4 and 3 for '{{node lambda_2/random_crop/GreaterEqual}} = GreaterEqual[T=DT_INT32](lambda_2/random_crop/Shape, lambda_2/random_crop/size)' with input shapes: [4], [3].
반응형
'Computer_Science > Visual Intelligence' 카테고리의 다른 글
| 23일차 - 논문 수업 (Learning Technique) (0) | 2021.10.15 |
|---|---|
| 22일차 - 논문 수업 (Learning Technique / numerical stability) (0) | 2021.10.15 |
| 20일차 - 논문 수업 (CNN) (0) | 2021.10.08 |
| 19일차 - 논문 수업 (CNN) (0) | 2021.10.08 |
| 18일차 - 논문 수업 (CNN) (0) | 2021.10.08 |
