30일차 논문 수업 (Detection)

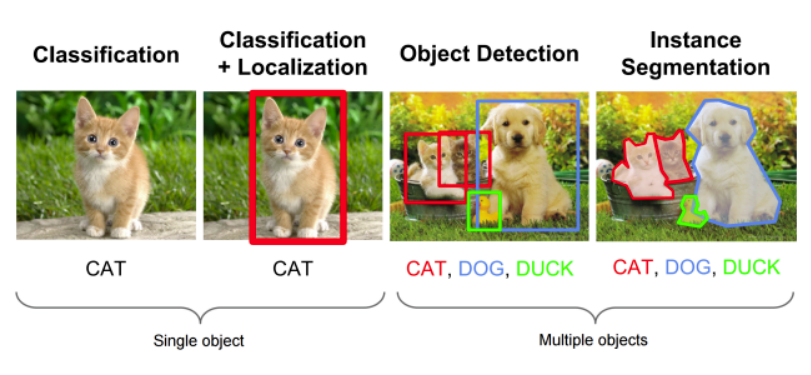

Object Detection

Single object detection 문제는 학습 데이터 구성을 하나의 물체로만 구성된 이미지들로 학습을 하게 되면 어렵지 않게 구현할 수 있다

하지만, Multiple object detection 문제는 물체가 한 개일 때 두 개 일 때 등 몇 개인지 정해지지 않았을 때는 문제가 까다로워진다

결국 이러한 문제를 해결하기 위해 고안된 방식이 Region proposal인 것이다

Localization이후에 detection을 하게 되면 multiple object detection 문제도 어느 정도 해결이 가능해 진다

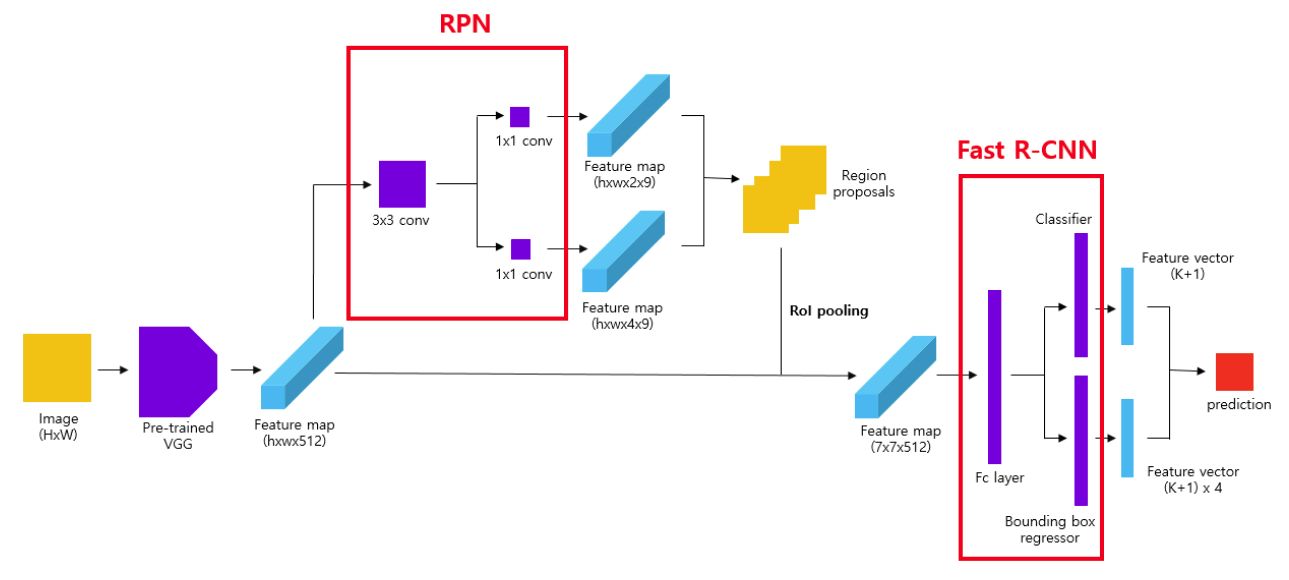

Faster R-CNN

Fast R-CNN은 하나의 네트워크로 구성할 수 없기 때문에 병목 현상이 발생하는 문제가 있었다
이러한 문제점을 보완하여 Selective search대신 Region proposal을 네트워크로 만들어 속도를 향상시킨 모델이다

Region proposal 구하는 과정

1. Pre-trained VGG모델에 이미지를 입력값으로 넣는다

2. VGG모델로 부터 나온 feature map을 3x3 conv연산을 한다

3. class score를 매기기 위해서 feature map에 대하여 1x1 conv 연산을 한다

4. class score에 따라 상위 N개의 region proposals만을 추출한다

import tensorflow as tf
import numpy as np
import pandas as pd
import cv2
import matplotlib.pyplot as plt
import matplotlib.patches as pt

img = tf.keras.utils.get_file('zebra.jpg', 'https://i.imgur.com/XjeiRMV.jpg')

h = w = 800

im = cv2.imread(img)
im = cv2.cvtColor(im, cv2.COLOR_BGR2RGB)

im_r = cv2.resize(im, (h,w))
im_r_ = im_r.copy()

vgg = tf.keras.applications.VGG16(include_top=False)
backbone = tf.keras.models.Model(vgg.input, vgg.layers[17].output)

backbone(im_r_[tf.newaxis]).shape
# TensorShape([1, 50, 50, 512])

backbone(im_r_[tf.newaxis])[0,...,0].shape
# TensorShape([50, 50])

backbone(im_r_[tf.newaxis])[0,...,0]


<tf.Tensor: shape=(50, 50), dtype=float32, numpy=
array([[ 0.       ,  0.       ,  0.       , ...,  0.       ,  0.       ,
         0.       ],
       [ 0.       ,  0.       ,  0.       , ...,  0.       ,  0.       ,
         0.       ],
       [ 0.       ,  0.       ,  0.       , ...,  0.       ,  0.       ,
         0.       ],
       ...,
       [ 1.2889676, 15.054933 , 11.117959 , ...,  0.       ,  0.       ,
         0.       ],
       [ 0.       ,  0.       ,  0.       , ...,  0.       ,  0.       ,
         0.       ],
       [ 0.       ,  0.       ,  0.       , ...,  0.       ,  0.       ,
         0.       ]], dtype=float32)>

plt.imshow(backbone(im_r_[tf.newaxis])[0,...,0])
# 원본 이미지가 vgg네트워크를 통과하면 원본이미지의 16x16크기가 feature map의 1x1로 표현된다

plt.imshow(backbone(im_r_[tf.newaxis])[0,...,1])

plt.imshow(backbone(im_r_[tf.newaxis])[0,...,2])

IOU 계산

box1 = [20,50,200,200]
box2 = [220,220,440,440]

x = np.zeros((500,500))

def iou(box1, box2):
  x1 = max(box1[0], box2[0])
  y1 = max(box1[1], box2[1])

  x2 = min(box1[2], box2[2])
  y2 = min(box1[3], box2[3])

  if (x1 < x2 and y1 < y2):
    w_o = x2-x1
    h_o = y2-y1
    area =  w_o*h_o
  else:
    return 0

  area_b1 = (box1[2] - box1[0])*(box1[3] - box1[1])
  area_b2 = (box2[2] - box2[0])*(box2[3] - box2[1])
  union =  area_b1 + area_b2 - area

  return area/union

iou(box1, box2)
# 0

fig, ax = plt.subplots()
ax.plot()
ax.add_patch(
   pt.Rectangle(
      (box1[0], box1[1]),
      box1[2], box1[3],
      edgecolor = 'red',
      facecolor = 'yellow',
      fill=True,
   ))
ax.add_patch(
   pt.Rectangle(
      (box2[0], box2[1]),
      box2[2], box2[3],
      edgecolor = 'red',
      facecolor = 'blue',
      fill=True,
   ))
plt.show()

x = np.arange(8,800,16)
y = np.arange(8,800,16)
ratio = [0.5,1,2]
scale = [8,16,32]
al = np.zeros((22500,4))
count = 0
cl = np.array(np.meshgrid(x,y)).T.reshape(-1,2)

for i in cl:
  cx, cy = i[0], i[1]
  for r in ratio:
    for s in scale:
      h = pow(pow(s,2)/r,0.5)
      w = h*r
      h *= 16
      w *= 16
      xmin = cx-0.5*w
      ymin = cy-0.5*h
      xmax = cx+0.5*w
      ymax = cy+0.5*h
      al[count] = [xmin,ymin,xmax,ymax]
      count += 1

Anchor는 0보다 작고 800보다 큰 값은 제외 시키고 구한다

is_al = al[np.where((al[:,0]>=0) & (al[:,1]>=0) & (al[:,2]<=800) & (al[:,3]<=800))]
len(is_al)
# 8940

im.shape, im_r_.shape
# ((333, 500, 3), (800, 800, 3))

box1 = [120,25,200,165]
box2 = [300,50,480,320]

point = 550
h = w = 800

x = np.array([120,25,200,165])
y = np.array([300,50,480,320])


img_ = np.copy(im_r_)
for i in range(point,point+9):
  x_min = int(al[i][0])
  y_min = int(al[i][1])
  x_max = int(al[i][2])
  y_max = int(al[i][3])
  cv2.rectangle(img_, (x_min,y_min),(x_max,y_max),(0,255,0),thickness=4)

for i in range(2500):
  cv2.circle(img_, (cl[i,0],cl[i,1]), 1, (255,0,0), thickness=2)

x[0] = int(x[0]*(w/im.shape[1]))
x[1] = int(x[1]*(h/im.shape[0]))
x[2] = int(x[2]*(w/im.shape[1]))
x[3] = int(x[3]*(h/im.shape[0]))

y[0] = int(y[0]*(w/im.shape[1]))
y[1] = int(y[1]*(h/im.shape[0]))
y[2] = int(y[2]*(w/im.shape[1]))
y[3] = int(y[3]*(h/im.shape[0]))

rec1 = cv2.rectangle(img_, (x[0],x[1]),(x[2],x[3]), color=(255,0,0), thickness=3)
rec2 = cv2.rectangle(img_, (y[0],y[1]),(y[2],y[3]), color=(255,0,0), thickness=3)

plt.imshow(img_)

x # object 1
# array([192,  60, 320, 396])

y # object2
# array([480, 120, 768, 768])

objects = [x,y]
result = np.zeros((8940,len(objects)))

for t, g in enumerate(objects):
  for i,j in enumerate(is_al):
    result[i][t] = iou(j,g)

anchor_id = np.where((al[:,0]>=0) & (al[:,1]>=0) & (al[:,2]<=800) & (al[:,3]<=800))

data = pd.DataFrame(data=[anchor_id[0],result[:,0],result[:,1]]).T # anchor당 iou값
data.rename(columns={0:'anchor_id',1:'o1_iou',2:'o2_iou'}, inplace=True)
data.anchor_id = data.anchor_id.astype('int')

data
	anchor_id	o1_iou	o2_iou
0	1404	0.0	0.000000
1	1413	0.0	0.000000
2	1422	0.0	0.000000
3	1431	0.0	0.000000
4	1440	0.0	0.000000
...	...	...	...
8935	21051	0.0	0.065818
8936	21060	0.0	0.065818
8937	21069	0.0	0.065818
8938	21078	0.0	0.064846
8939	21087	0.0	0.058693

data.o1_iou.max(), data.o1_iou.argmax()
# (0.6562500000000001, 1785)

data.o2_iou.max(), data.o2_iou.argmax()
# (0.7119140625000001, 7540)

data[data.o1_iou > 0.65]
	anchor_id	o1_iou	o2_iou
1785	6418	0.65625	0.0
1791	6427	0.65625	0.0
2013	6868	0.65625	0.0
2019	6877	0.65625	0.0
2241	7318	0.65625	0.0
2247	7327	0.65625	0.0
2487	7768	0.65625	0.0
2493	7777	0.65625	0.0

data[data.o2_iou > 0.7]

anchor_id	o1_iou	o2_iou
7540	16877	0.0	0.711914
7547	16886	0.0	0.711914
7768	17327	0.0	0.711914
7775	17336	0.0	0.711914

data[data.o2_iou > 0.7].anchor_id.values, 1785 # 5개만 물체라고 볼수 있다
# (array([16877, 16886, 17327, 17336]), 1785)

top = al[data[data.o2_iou > 0.7].anchor_id.values]
al[1785]
# array([ -8., 712., 120., 840.])

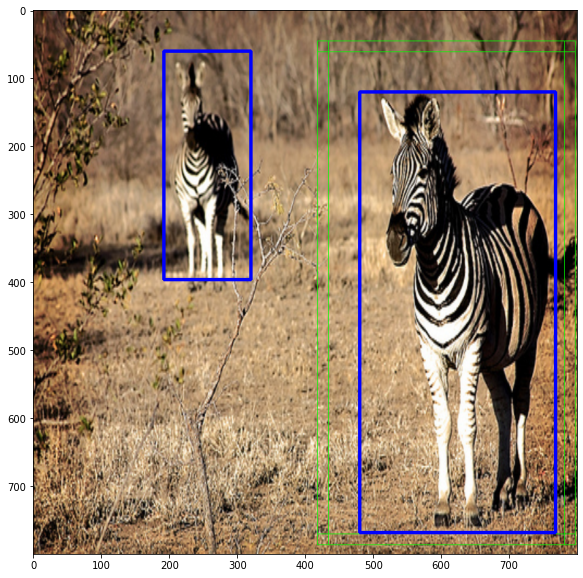

point = 550
h = w = 800

x = np.array([120,25,200,165])
y = np.array([300,50,480,320])


img_2 = np.copy(im_r_)
for i,j in enumerate(top):
  x_min = int(top[i][0])
  y_min = int(top[i][1])
  x_max = int(top[i][2])
  y_max = int(top[i][3])
  cv2.rectangle(img_2, (x_min,y_min),(x_max,y_max),(0,255,0),thickness=1)

# for i in range(2500):
#   cv2.circle(img_2, (cl[i,0],cl[i,1]), 1, (255,0,0), thickness=2)

x[0] = int(x[0]*(w/im.shape[1]))
x[1] = int(x[1]*(h/im.shape[0]))
x[2] = int(x[2]*(w/im.shape[1]))
x[3] = int(x[3]*(h/im.shape[0]))

y[0] = int(y[0]*(w/im.shape[1]))
y[1] = int(y[1]*(h/im.shape[0]))
y[2] = int(y[2]*(w/im.shape[1]))
y[3] = int(y[3]*(h/im.shape[0]))

rec1 = cv2.rectangle(img_2, (x[0],x[1]),(x[2],x[3]), color=(0,0,255), thickness=3)
rec2 = cv2.rectangle(img_2, (y[0],y[1]),(y[2],y[3]), color=(0,0,255), thickness=3)

plt.figure(figsize=(10,10))
plt.imshow(img_2)

data['o1_iou_objectness'] = data.apply(lambda x: 1 if x['o1_iou'] > 0.7 else -1, axis=1)

data['o2_iou_objectness'] = data.apply(lambda x: 1 if x['o2_iou'] > 0.7 else -1, axis=1)

data[data['o1_iou_objectness']==1]

anchor_id	o1_iou	o2_iou	o1_iou_objectness

data[data['o2_iou_objectness']==1]
	anchor_id	o1_iou	o2_iou	o1_iou_objectness	o2_iou_objectness
7540	16877	0.0	0.711914	-1	1
7547	16886	0.0	0.711914	-1	1
7768	17327	0.0	0.711914	-1	1
7775	17336	0.0	0.711914	-1	1

Region proposal

input_ = tf.keras.Input((50,50,512))
x = tf.keras.layers.Conv2D(512,3, padding='same')(input_)
regressor = tf.keras.layers.Conv2D(4*9,1, activation='linear', name='reg')(x)
classifier = tf.keras.layers.Conv2D(9,1, activation='sigmoid', name='cla')(x)
PRN = tf.keras.models.Model(input_, [regressor, classifier])

PRN.summary()
Model: "model"
__________________________________________________________________________________________________
Layer (type)                    Output Shape         Param #     Connected to
==================================================================================================
input_2 (InputLayer)            [(None, 50, 50, 512) 0
__________________________________________________________________________________________________
conv2d_2 (Conv2D)               (None, 50, 50, 512)  2359808     input_2[0][0]
__________________________________________________________________________________________________
reg (Conv2D)                    (None, 50, 50, 36)   18468       conv2d_2[0][0]
__________________________________________________________________________________________________
cla (Conv2D)                    (None, 50, 50, 9)    4617        conv2d_2[0][0]
==================================================================================================
Total params: 2,382,893
Trainable params: 2,382,893
Non-trainable params: 0
__________________________________________________________________________________________________

Loss

y_true = np.array([[0.,1.],[0.,0.]])
y_pred = np.array([[1.,1.],[1.,0.]])

loss1 = tf.keras.losses.MeanSquaredError()
loss2 = tf.keras.losses.mean_squared_error

tf.nn.l2_loss(y_true-y_pred)
# <tf.Tensor: shape=(), dtype=float64, numpy=1.0>

loss1(y_true, y_pred)
# <tf.Tensor: shape=(), dtype=float64, numpy=0.5>

loss2(y_true, y_pred)
# <tf.Tensor: shape=(2,), dtype=float64, numpy=array([0.5, 0.5])>

loss(y_true, y_pred)
# <tf.Tensor: shape=(), dtype=float32, numpy=0.5>

def smooth_l1_loss(y_truee, y_pred,smooth=1):
  x = tf.abs(y_true, y_pred)
  mask = tf.cast(tf.less(x,1.0), tf.float32)
  loss = (mask*(0.5*x**2)) + (1-mask)*(x-0.5)
  return loss

class MyLoss(tf.keras.losses.Loss):
  def call(self,y_true,y_pred,smooth=1):
    x = tf.abs(y_true, y_pred)
    mask = tf.cast(tf.less(x,1.0), tf.float32)
    loss = (mask*(0.5*x**2)) + (1-mask)*(smooth-0.5)
    return loss

from functools import partial
mys = partial(smooth_l1_loss, smooth=2)
