%cd mmdetection
model = build_detector(cfg.model, train_cfg=cfg.get('train_cfg'), test_cfg=cfg.get('test_cfg'))
model.CLASSES = datasets[0].CLASSES
mmcv.mkdir_or_exist(osp.abspath(cfg.work_dir))
# epochs는 config의 runner 파라미터로 지정됨. 기본 12회
train_detector(model, datasets, cfg, distributed=False, validate=True)
/content/mmdetection
/usr/local/lib/python3.7/dist-packages/mmdet-2.17.0-py3.7.egg/mmdet/core/anchor/builder.py:17: UserWarning: ``build_anchor_generator`` would be deprecated soon, please use ``build_prior_generator``
'``build_anchor_generator`` would be deprecated soon, please use '
2021-10-17 09:04:41,047 - mmdet - INFO - load checkpoint from checkpoints/faster_rcnn_r50_fpn_1x_coco_20200130-047c8118.pth
2021-10-17 09:04:41,048 - mmdet - INFO - Use load_from_local loader
2021-10-17 09:04:41,215 - mmdet - WARNING - The model and loaded state dict do not match exactly
size mismatch for roi_head.bbox_head.fc_cls.weight: copying a param with shape torch.Size([81, 1024]) from checkpoint, the shape in current model is torch.Size([38, 1024]).
size mismatch for roi_head.bbox_head.fc_cls.bias: copying a param with shape torch.Size([81]) from checkpoint, the shape in current model is torch.Size([38]).
size mismatch for roi_head.bbox_head.fc_reg.weight: copying a param with shape torch.Size([320, 1024]) from checkpoint, the shape in current model is torch.Size([148, 1024]).
size mismatch for roi_head.bbox_head.fc_reg.bias: copying a param with shape torch.Size([320]) from checkpoint, the shape in current model is torch.Size([148]).
2021-10-17 09:04:41,226 - mmdet - INFO - Start running, host: root@bcf0fa707f92, work_dir: /mydrive/pet_work_dir
2021-10-17 09:04:41,228 - mmdet - INFO - Hooks will be executed in the following order:
before_run:
(VERY_HIGH ) StepLrUpdaterHook
(NORMAL ) CheckpointHook
(LOW ) EvalHook
(VERY_LOW ) TextLoggerHook
--------------------
before_train_epoch:
(VERY_HIGH ) StepLrUpdaterHook
(NORMAL ) NumClassCheckHook
(LOW ) IterTimerHook
(LOW ) EvalHook
(VERY_LOW ) TextLoggerHook
--------------------
before_train_iter:
(VERY_HIGH ) StepLrUpdaterHook
(LOW ) IterTimerHook
(LOW ) EvalHook
--------------------
after_train_iter:
(ABOVE_NORMAL) OptimizerHook
(NORMAL ) CheckpointHook
(LOW ) IterTimerHook
(LOW ) EvalHook
(VERY_LOW ) TextLoggerHook
--------------------
after_train_epoch:
(NORMAL ) CheckpointHook
(LOW ) EvalHook
(VERY_LOW ) TextLoggerHook
--------------------
before_val_epoch:
(NORMAL ) NumClassCheckHook
(LOW ) IterTimerHook
(VERY_LOW ) TextLoggerHook
--------------------
before_val_iter:
(LOW ) IterTimerHook
--------------------
after_val_iter:
(LOW ) IterTimerHook
--------------------
after_val_epoch:
(VERY_LOW ) TextLoggerHook
--------------------
2021-10-17 09:04:41,231 - mmdet - INFO - workflow: [('train', 1)], max: 5 epochs
/usr/local/lib/python3.7/dist-packages/torch/nn/functional.py:718: UserWarning: Named tensors and all their associated APIs are an experimental feature and subject to change. Please do not use them for anything important until they are released as stable. (Triggered internally at /pytorch/c10/core/TensorImpl.h:1156.)
return torch.max_pool2d(input, kernel_size, stride, padding, dilation, ceil_mode)
/usr/local/lib/python3.7/dist-packages/mmdet-2.17.0-py3.7.egg/mmdet/core/anchor/anchor_generator.py:324: UserWarning: ``grid_anchors`` would be deprecated soon. Please use ``grid_priors``
warnings.warn('``grid_anchors`` would be deprecated soon. '
/usr/local/lib/python3.7/dist-packages/mmdet-2.17.0-py3.7.egg/mmdet/core/anchor/anchor_generator.py:361: UserWarning: ``single_level_grid_anchors`` would be deprecated soon. Please use ``single_level_grid_priors``
'``single_level_grid_anchors`` would be deprecated soon. '
2021-10-17 09:05:01,399 - mmdet - INFO - Epoch [1][5/827] lr: 2.500e-03, eta: 4:29:38, time: 3.917, data_time: 0.507, memory: 9645, loss_rpn_cls: 0.0123, loss_rpn_bbox: 0.0100, loss_cls: 2.2307, acc: 58.4863, loss_bbox: 0.1100, loss: 2.3629
# torch의 epoch방식 // batch size를 고려한 827, 1로 하면 3312개 // eta : 종료시간계산 // time 걸린 시간// memory : gpu메모리// rpn : rpn찾는 loss,// bbox찾는 loss // main acc // main loss
# /content/data 디렉토리를 만들고 해당 디렉토리에 다운로드 받은 압축 파일 풀기.
!mkdir /content/data
!tar -xvf images.tar.gz -C /content/data
!tar -xvf annotations.tar.gz -C /content/data
이미지 디렉토리와 annotation 파일 살펴 보기
!ls -lia ./data/images/Abyss*.jpg
!ls -lia ./data/images
!cat ./data/annotations/xmls/Abyssinian_1.xml
import glob
import xml.etree.ElementTree as ET
# annotation xml 파일 파싱해서 bbox정보 추출
def get_bboxes_from_xml_test(xml_file):
tree = ET.parse(xml_file)
root = tree.getroot()
bbox_names = []
bboxes = []
# 파일내에 있는 모든 object Element를 찾음.
for obj in root.findall('object'):
bbox_name = obj.find('name').text
xmlbox = obj.find('bndbox')
x1 = int(xmlbox.find('xmin').text)
y1 = int(xmlbox.find('ymin').text)
x2 = int(xmlbox.find('xmax').text)
y2 = int(xmlbox.find('ymax').text)
bbox_names.append(bbox_name)
bboxes.append([x1, y1, x2, y2])
return bbox_names, bboxes
get_bboxes_from_xml_test('./data/annotations/xmls/Abyssinian_1.xml')
# (['cat'], [[333, 72, 425, 158]])
!ls -lia ./data/annotations/xmls/Abys*.xml
train, val image/annotation 메타 파일 보기
train과 valid 데이터로 나뉠 image와 annotation의 파일명을 가지는 메타 파일
import copy
import os.path as osp
import mmcv
import numpy as np
import cv2
from mmdet.datasets.builder import DATASETS
from mmdet.datasets.custom import CustomDataset
import xml.etree.ElementTree as ET
PET_CLASSES = pet_df['class_name'].unique().tolist()
@DATASETS.register_module(force=True)
class PetDataset(CustomDataset):
CLASSES = PET_CLASSES
# annotation에 대한 모든 파일명을 가지고 있는 텍스트 파일을 __init__(self, ann_file)로 입력 받고,
# 이 self.ann_file이 load_annotations()의 인자로 입력
def load_annotations(self, ann_file):
cat2label = {k:i for i, k in enumerate(self.CLASSES)}
image_list = mmcv.list_from_file(self.ann_file)
# 포맷 중립 데이터를 담을 list 객체
data_infos = []
for image_id in image_list:
# self.img_prefix는 images 가 입력될 것임.
filename = '{0:}/{1:}.jpg'.format(self.img_prefix, image_id)
# 원본 이미지의 너비, 높이를 image를 직접 로드하여 구함.
image = cv2.imread(filename)
height, width = image.shape[:2]
# 개별 image의 annotation 정보 저장용 Dict 생성. key값 filename에는 image의 파일명만 들어감(디렉토리는 제외)
data_info = {'filename': filename,
'width': width, 'height': height}
# 개별 annotation XML 파일이 있는 서브 디렉토리의 prefix 변환.
label_prefix = self.img_prefix.replace('images', 'annotations')
# 개별 annotation XML 파일을 1개 line 씩 읽어서 list 로드. annotation XML파일이 xmls 밑에 있음에 유의
anno_xml_file = osp.join(label_prefix, 'xmls/'+str(image_id)+'.xml')
# 메타 파일에는 이름이 있으나 실제로는 존재하지 않는 XML이 있으므로 이는 제외.
if not osp.exists(anno_xml_file):
continue
# get_bboxes_from_xml() 를 이용하여 개별 XML 파일에 있는 이미지의 모든 bbox 정보를 list 객체로 생성.
anno_dir = osp.join(label_prefix, 'xmls')
bbox_names, bboxes = get_bboxes_from_xml(anno_dir, str(image_id)+'.xml')
#print('#########:', bbox_names)
gt_bboxes = []
gt_labels = []
gt_bboxes_ignore = []
gt_labels_ignore = []
# bbox별 Object들의 class name을 class id로 매핑. class id는 tuple(list)형의 CLASSES의 index값에 따라 설정
for bbox_name, bbox in zip(bbox_names, bboxes):
# 만약 bbox_name이 클래스명에 해당 되면, gt_bboxes와 gt_labels에 추가, 그렇지 않으면 gt_bboxes_ignore, gt_labels_ignore에 추가
# bbox_name이 CLASSES중에 반드시 하나 있어야 함. 안 그러면 FILTERING 되므로 주의 할것.
if bbox_name in cat2label:
gt_bboxes.append(bbox)
# gt_labels에는 class id를 입력
gt_labels.append(cat2label[bbox_name])
else:
gt_bboxes_ignore.append(bbox)
gt_labels_ignore.append(-1)
# 개별 image별 annotation 정보를 가지는 Dict 생성. 해당 Dict의 value값을 np.array형태로 bbox의 좌표와 label값으로 생성.
data_anno = {
'bboxes': np.array(gt_bboxes, dtype=np.float32).reshape(-1, 4),
'labels': np.array(gt_labels, dtype=np.long),
'bboxes_ignore': np.array(gt_bboxes_ignore, dtype=np.float32).reshape(-1, 4),
'labels_ignore': np.array(gt_labels_ignore, dtype=np.long)
}
# image에 대한 메타 정보를 가지는 data_info Dict에 'ann' key값으로 data_anno를 value로 저장.
data_info.update(ann=data_anno)
# 전체 annotation 파일들에 대한 정보를 가지는 data_infos에 data_info Dict를 추가
data_infos.append(data_info)
#print(data_info)
return data_infos
!wget https://www.robots.ox.ac.uk/~vgg/data/pets/data/images.tar.gz
!wget https://www.robots.ox.ac.uk/~vgg/data/pets/data/annotations.tar.gz
# /content/data 디렉토리를 만들고 해당 디렉토리에 다운로드 받은 압축 파일 풀기.
!mkdir /content/data
!tar -xvf images.tar.gz -C /content/data
!tar -xvf annotations.tar.gz -C /content/data
!echo 'train list #####'; cat ./data/train.txt
train list #####
Abyssinian_1
Abyssinian_10
Abyssinian_101
Abyssinian_102
...
yorkshire_terrier_187
yorkshire_terrier_188
yorkshire_terrier_189
!echo ' valid list ###'; cat ./data/val.txt
valid list ###
Abyssinian_100
Abyssinian_11
...
yorkshire_terrier_185
yorkshire_terrier_190

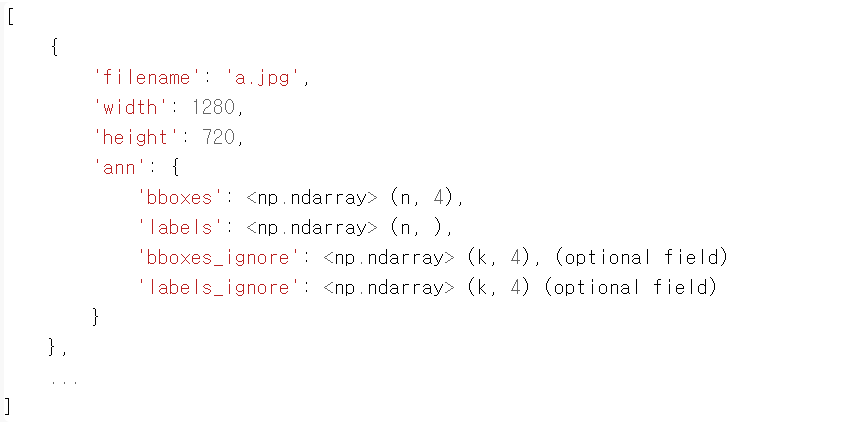

mmdetection의 중립 annotation 포맷 변환
CLASSES 는 pet_df의 'class_name' 컬럼에 unique 데이터로 지정. class id는 tuple(list)형의 CLASSES의 index값에 따라 설정.
ann_file로 입력되는 메타 파일을 읽어서 개별 image정보와 ann 정보를 dict로 생성하여 data_infos list에 입력
개별 XML 읽어서 ann 정보를 만드는 것은 get_bboxes_from_xml() 함수 이용.
디버깅용으로 CustomDataset을 만들어서 미리 테스트 하는 방법도 고려.
import xml.etree.ElementTree as ET
# 1개의 annotation 파일에서 bbox 정보 추출. 여러개의 object가 있을 경우 이들 object의 name과 bbox 좌표들을 list로 반환.
def get_bboxes_from_xml(anno_dir, xml_file):
anno_xml_file = osp.join(anno_dir, xml_file)
tree = ET.parse(anno_xml_file)
root = tree.getroot()
bbox_names = []
bboxes = []
# 파일내에 있는 모든 object Element를 찾음.
for obj in root.findall('object'):
#obj.find('name').text는 cat 이나 dog을 반환
#bbox_name = obj.find('name').text
# object의 클래스명은 파일명에서 추출.
bbox_name = xml_file[:xml_file.rfind('_')]
xmlbox = obj.find('bndbox')
x1 = int(xmlbox.find('xmin').text)
y1 = int(xmlbox.find('ymin').text)
x2 = int(xmlbox.find('xmax').text)
y2 = int(xmlbox.find('ymax').text)
bboxes.append([x1, y1, x2, y2])
bbox_names.append(bbox_name)
return bbox_names, bboxes
import copy
import os.path as osp
import mmcv
import numpy as np
import cv2
from mmdet.datasets.builder import DATASETS
from mmdet.datasets.custom import CustomDataset
import xml.etree.ElementTree as ET
PET_CLASSES = pet_df['class_name'].unique().tolist()
@DATASETS.register_module(force=True)
class PetDataset(CustomDataset):
CLASSES = PET_CLASSES
# annotation에 대한 모든 파일명을 가지고 있는 텍스트 파일을 __init__(self, ann_file)로 입력 받고,
# 이 self.ann_file이 load_annotations()의 인자로 입력
def load_annotations(self, ann_file):
cat2label = {k:i for i, k in enumerate(self.CLASSES)}
image_list = mmcv.list_from_file(self.ann_file)
# 포맷 중립 데이터를 담을 list 객체
data_infos = []
for image_id in image_list:
# self.img_prefix는 images 가 입력될 것임.
filename = '{0:}/{1:}.jpg'.format(self.img_prefix, image_id)
# 원본 이미지의 너비, 높이를 image를 직접 로드하여 구함.
image = cv2.imread(filename)
height, width = image.shape[:2]
# 개별 image의 annotation 정보 저장용 Dict 생성. key값 filename에는 image의 파일명만 들어감(디렉토리는 제외)
data_info = {'filename': filename,
'width': width, 'height': height}
# 개별 annotation XML 파일이 있는 서브 디렉토리의 prefix 변환.
label_prefix = self.img_prefix.replace('images', 'annotations')
# 개별 annotation XML 파일을 1개 line 씩 읽어서 list 로드. annotation XML파일이 xmls 밑에 있음에 유의
anno_xml_file = osp.join(label_prefix, 'xmls/'+str(image_id)+'.xml')
# 메타 파일에는 이름이 있으나 실제로는 존재하지 않는 XML이 있으므로 이는 제외.
if not osp.exists(anno_xml_file):
continue
# get_bboxes_from_xml() 를 이용하여 개별 XML 파일에 있는 이미지의 모든 bbox 정보를 list 객체로 생성.
anno_dir = osp.join(label_prefix, 'xmls')
bbox_names, bboxes = get_bboxes_from_xml(anno_dir, str(image_id)+'.xml')
#print('#########:', bbox_names)
gt_bboxes = []
gt_labels = []
gt_bboxes_ignore = []
gt_labels_ignore = []
# bbox별 Object들의 class name을 class id로 매핑. class id는 tuple(list)형의 CLASSES의 index값에 따라 설정
for bbox_name, bbox in zip(bbox_names, bboxes):
# 만약 bbox_name이 클래스명에 해당 되면, gt_bboxes와 gt_labels에 추가, 그렇지 않으면 gt_bboxes_ignore, gt_labels_ignore에 추가
# bbox_name이 CLASSES중에 반드시 하나 있어야 함. 안 그러면 FILTERING 되므로 주의 할것.
if bbox_name in cat2label:
gt_bboxes.append(bbox)
# gt_labels에는 class id를 입력
gt_labels.append(cat2label[bbox_name])
else:
gt_bboxes_ignore.append(bbox)
gt_labels_ignore.append(-1)
# 개별 image별 annotation 정보를 가지는 Dict 생성. 해당 Dict의 value값을 np.array형태로 bbox의 좌표와 label값으로 생성.
data_anno = {
'bboxes': np.array(gt_bboxes, dtype=np.float32).reshape(-1, 4),
'labels': np.array(gt_labels, dtype=np.long),
'bboxes_ignore': np.array(gt_bboxes_ignore, dtype=np.float32).reshape(-1, 4),
'labels_ignore': np.array(gt_labels_ignore, dtype=np.long)
}
# image에 대한 메타 정보를 가지는 data_info Dict에 'ann' key값으로 data_anno를 value로 저장.
data_info.update(ann=data_anno)
# 전체 annotation 파일들에 대한 정보를 가지는 data_infos에 data_info Dict를 추가
data_infos.append(data_info)
#print(data_info)
return data_infos
''' 디버깅 용도로 CustomDataset을 흉내낸 클래스를 생성하여 다양한 테스트를 수행 가능 '''
import os.path as osp
PET_CLASSES = pet_df['class_name'].unique().tolist()
# 디버깅 용도로 CustomDataset을 흉내낸 클래스 생성.
class PetDataset_imsi():
CLASSES = PET_CLASSES
# 생성자 함수 생성.
def __init__(self, data_root, ann_file, img_prefix):
self.data_root = data_root
self.ann_file = osp.join(data_root, ann_file)
self.img_prefix = osp.join(data_root, img_prefix)
self.data_infos = self.load_annotations(self.ann_file)
# annotation에 대한 모든 파일명을 가지고 있는 텍스트 파일을 __init__(self, ann_file)로 입력 받고,
# 이 self.ann_file이 load_annotations()의 인자로 입력
def load_annotations(self, ann_file):
cat2label = {k:i for i, k in enumerate(self.CLASSES)}
image_list = mmcv.list_from_file(self.ann_file)
# 포맷 중립 데이터를 담을 list 객체
data_infos = []
for image_id in image_list:
# self.img_prefix는 images 가 입력될 것임.
filename = '{0:}/{1:}.jpg'.format(self.img_prefix, image_id)
# 원본 이미지의 너비, 높이를 image를 직접 로드하여 구함.
image = cv2.imread(filename)
height, width = image.shape[:2]
# 개별 image의 annotation 정보 저장용 Dict 생성. key값 filename에는 image의 파일명만 들어감(디렉토리는 제외)
data_info = {'filename': filename,
'width': width, 'height': height}
# 개별 annotation XML 파일이 있는 서브 디렉토리의 prefix 변환.
label_prefix = self.img_prefix.replace('images', 'annotations')
# 개별 annotation XML 파일을 1개 line 씩 읽어서 list 로드. annotation XML파일이 xmls 밑에 있음에 유의
anno_xml_file = osp.join(label_prefix, 'xmls/'+str(image_id)+'.xml')
# 메타 파일에는 이름이 있으나 실제로는 존재하지 않는 XML이 있으므로 이는 제외.
if not osp.exists(anno_xml_file):
continue
# get_bboxes_from_xml() 를 이용하여 개별 XML 파일에 있는 이미지의 모든 bbox 정보를 list 객체로 생성.
anno_dir = osp.join(label_prefix, 'xmls')
bbox_names, bboxes = get_bboxes_from_xml(anno_dir, str(image_id)+'.xml')
#print('#########:', bbox_names)
gt_bboxes = []
gt_labels = []
gt_bboxes_ignore = []
gt_labels_ignore = []
# bbox별 Object들의 class name을 class id로 매핑. class id는 tuple(list)형의 CLASSES의 index값에 따라 설정
for bbox_name, bbox in zip(bbox_names, bboxes):
# 만약 bbox_name이 클래스명에 해당 되면, gt_bboxes와 gt_labels에 추가, 그렇지 않으면 gt_bboxes_ignore, gt_labels_ignore에 추가
# bbox_name이 CLASSES중에 반드시 하나 있어야 함. 안 그러면 FILTERING 되므로 주의 할것.
if bbox_name in cat2label:
gt_bboxes.append(bbox)
# gt_labels에는 class id를 입력
gt_labels.append(cat2label[bbox_name])
else:
gt_bboxes_ignore.append(bbox)
gt_labels_ignore.append(-1)
# 개별 image별 annotation 정보를 가지는 Dict 생성. 해당 Dict의 value값을 np.array형태로 bbox의 좌표와 label값으로 생성.
data_anno = {
'bboxes': np.array(gt_bboxes, dtype=np.float32).reshape(-1, 4),
'labels': np.array(gt_labels, dtype=np.long),
'bboxes_ignore': np.array(gt_bboxes_ignore, dtype=np.float32).reshape(-1, 4),
'labels_ignore': np.array(gt_labels_ignore, dtype=np.long)
}
# image에 대한 메타 정보를 가지는 data_info Dict에 'ann' key값으로 data_anno를 value로 저장.
data_info.update(ann=data_anno)
# 전체 annotation 파일들에 대한 정보를 가지는 data_infos에 data_info Dict를 추가
data_infos.append(data_info)
#print(data_info)
return data_infos
dataset의 type(customdataset, cocodataset 등), train/val/test dataset 유형, data_root, train/val/test dataset의 주요 파라미터 설정(type, ann_file, img_prefix, pipeline 등)
model
object detection model의 backbone, neck, dense head, roi extractor, roi head(num_classes=4) 주요 영역별로 세부 설정
schedule
optimizer 유형 설정 (sgd, adam, rmsprop 등), 최초 learning 설정 학습중 동적 learning rate 적용 정책 설정(step, cyclic, cosine annealing 등) train 시 epochs 횟수 : learning rate scheduler
runtime
주로 hook(callback)관련 설정 학습 중 checkpoint 파일, log 파일 생성을 위한 interval epochs 수

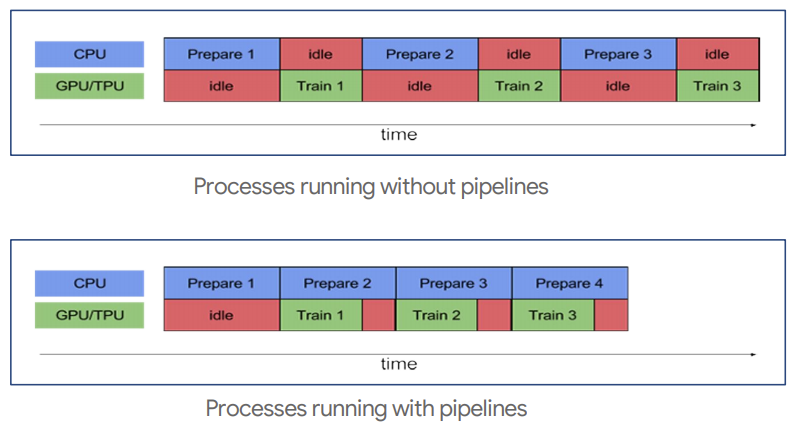

tf.data를 활용하여 data pipeline을 구축하면 하드웨어를 효율적으로 사용할 수 있다

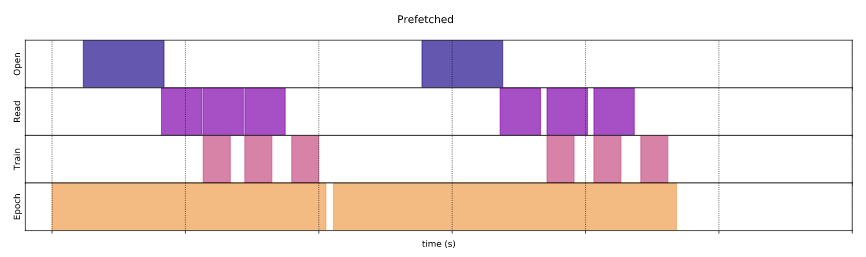

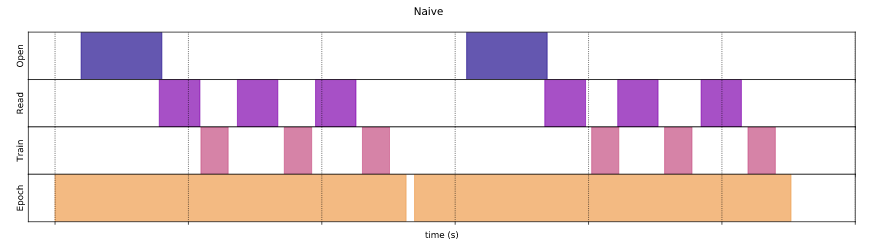

prefetch를 통해 gpu를 사용하여 데이터 학습 중일 때 데이터 로드시간을 줄이기 위해 cpu 연산을 하여 불러온다
병렬 연산, cache또한 지원한다
import tensorflow as tf
import pandas as pd
pd.DataFrame.from_dict() # classmethod를 이용해서 dataset을 만든다
x = tf.constant([[1,2],[3,4],[5,6]])
y = tf.constant([[1],[3],[5]])
x # 요소가 두 개인 데이터 3개
# <tf.Tensor: shape=(3, 2), dtype=int32, numpy=
# array([[1, 2],
# [3, 4],
# [5, 6]], dtype=int32)>
xx = tf.data.Dataset.from_tensor_slices(x) # lazy 기법을 사용해서 불러온다
for i in xx.take(2):
print(i)
# tf.Tensor([1 2], shape=(2,), dtype=int32)
# tf.Tensor([3 4], shape=(2,), dtype=int32)
xx = tf.data.Dataset.from_tensor_slices((x,y)) # x,y 묶음으로 관리 가능
for i, j in xx:
print(i,j)
# tf.Tensor([1 2], shape=(2,), dtype=int32) tf.Tensor([1], shape=(1,), dtype=int32)
# tf.Tensor([3 4], shape=(2,), dtype=int32) tf.Tensor([3], shape=(1,), dtype=int32)
# tf.Tensor([5 6], shape=(2,), dtype=int32) tf.Tensor([5], shape=(1,), dtype=int32)
xx.cache().prefetch(32).shuffle(32)
# <ShuffleDataset shapes: ((2,), (1,)), types: (tf.int32, tf.int32)>
xx = tf.data.Dataset.from_tensors(x) # 전체 데이터
for i in xx.take(1):
print(i)
# tf.Tensor(
# [[1 2]
# [3 4]
# [5 6]], shape=(3, 2), dtype=int32)
Data Augmentation
augmentation방법두가지
1.원본을array로바꾸고나서array를augmentation
2.원본자체를augmentation (이미지파일처리)
1. Basic image manipulation
- overfitting 방지하는 방식
- 원본 자체를 augmentation을 하지 않는다 (성능향상에 도움이 되는 방법이 아니다)
import pathlib
flower_path = pathlib.Path('flower_photos')
for i in flower_path.glob('*/*.jpg'):
print(i)
# flower_photos/dandelion/8915661673_9a1cdc3755_m.jpg
# flower_photos/dandelion/8740218495_23858355d8_n.jpg
# flower_photos/dandelion/2608937632_cfd93bc7cd.jpg
# ...
# flower_photos/tulips/8690791226_b1f015259f_n.jpg
# flower_photos/tulips/4612075317_91eefff68c_n.jpg
ls = tf.data.Dataset.list_files('flower_photos/*/*.jpg') # 파일 명을 불러온다
import matplotlib.pyplot as plt

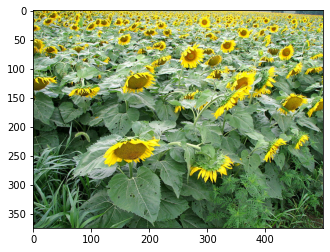

for i in ls.take(100):
x = tf.keras.preprocessing.image.load_img(i.numpy())
plt.imshow(x)

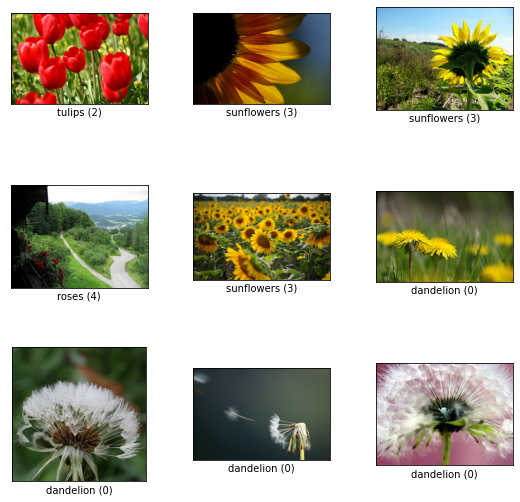

metadata
# tfds.core.DatasetInfo(
name='tf_flowers',
full_name='tf_flowers/3.0.1',
description="""
A large set of images of flowers
""",
homepage='https://www.tensorflow.org/tutorials/load_data/images',
data_path='/root/tensorflow_datasets/tf_flowers/3.0.1',
download_size=218.21 MiB,
dataset_size=221.83 MiB,
features=FeaturesDict({
'image': Image(shape=(None, None, 3), dtype=tf.uint8),
'label': ClassLabel(shape=(), dtype=tf.int64, num_classes=5),
}),
supervised_keys=('image', 'label'),
disable_shuffling=False,
splits={
'train': <SplitInfo num_examples=3670, num_shards=2>,
},
citation="""@ONLINE {tfflowers,
author = "The TensorFlow Team",
title = "Flowers",
month = "jan",
year = "2019",
url = "http://download.tensorflow.org/example_images/flower_photos.tgz" }""",
)
metadata.features['image']
# Image(shape=(None, None, 3), dtype=tf.uint8)
metadata.features['label']
# ClassLabel(shape=(), dtype=tf.int64, num_classes=5)
metadata.features['label'].int2str(0)
# 'dandelion'

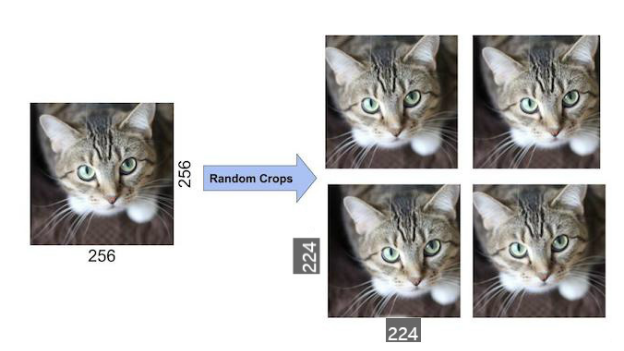

tf.keras.layers.experimental.preprocessing.RandomCrop
tf.keras.layers.RandomCrop
# model 안에서 함께 사용 가능하다 (preprocessing layer) => map이랑 같이 쓸수 있다
import numpy as np
im = tf.keras.preprocessing.image.load_img('people.jpg')
x = np.array(im)
xx = tf.keras.layers.RandomRotation(0.4)(x)
plt.imshow(xx)
xx = tf.keras.layers.RandomFlip()(x)
plt.imshow(xx)
aug = tf.keras.models.Sequential([
tf.keras.layers.RandomRotation(0.5),s
tf.keras.layers.RandomFlip()
]) # Model보다 Sequential이 좋은 점은 다른 모델안에도 들어갈수 있다는 점이다 (전처리 레이어를 사용할 때 명확하게 확인 가능하다)
plt.imshow(aug(x))
# Model안에 Sequential 전처리 Layer 포함된 예시
model = tf.keras.models.Model([
aug,
tf.keras.layers.Conv2D(16, 3, padding='same', activation='relu'),
tf.keras.layers.MaxPooling2D(),
]) # 전처리 자체가 모델 안에 들어가기 때문에 gpu로 전처리가 가능하다
tf.image.random_crop # 하나씩 처리
from albumentations import Compose, RandomBrightnessContrast, HorizontalFlip
aug = Compose([RandomBrightnessContrast(), HorizontalFlip()])
aug
# Compose([
# RandomBrightnessContrast(always_apply=False, p=0.5, brightness_limit=(-0.2, 0.2), contrast_limit=(-0.2, 0.2), brightness_by_max=True),
# HorizontalFlip(always_apply=False, p=0.5),
# ], p=1.0, bbox_params=None, keypoint_params=None, additional_targets={})
plt.hist(y_train, width=0.3) # 데이터 클래스가 균등한지 확인
# (array([5000., 5000., 5000., 5000., 5000., 5000., 5000., 5000., 5000., 5000.]),
# array([0. , 0.9, 1.8, 2.7, 3.6, 4.5, 5.4, 6.3, 7.2, 8.1, 9. ]),
# <a list of 10 Patch objects>)
# 비율과 크기가 다르다 => 전통적인 ml방식으로는 해결할 수 없다 => CNN으로 해결해야 한다

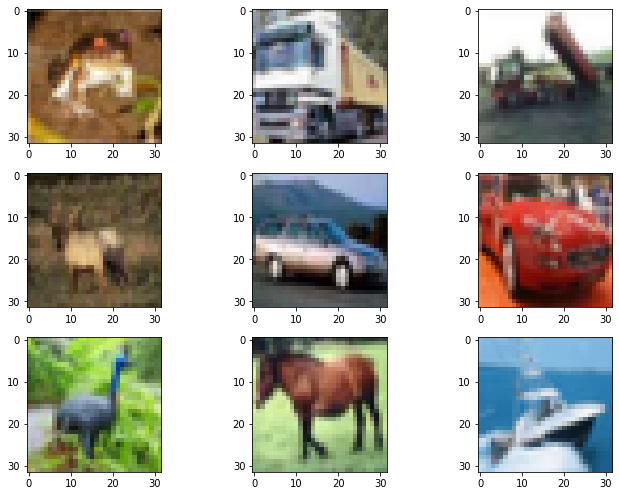

rows = 3
cols = 3
axes=[]
fig=plt.figure(figsize=(10,7))
for a in range(rows*cols):
axes.append(fig.add_subplot(rows, cols, a+1))
plt.imshow(X_train[a])
fig.tight_layout()
plt.show()

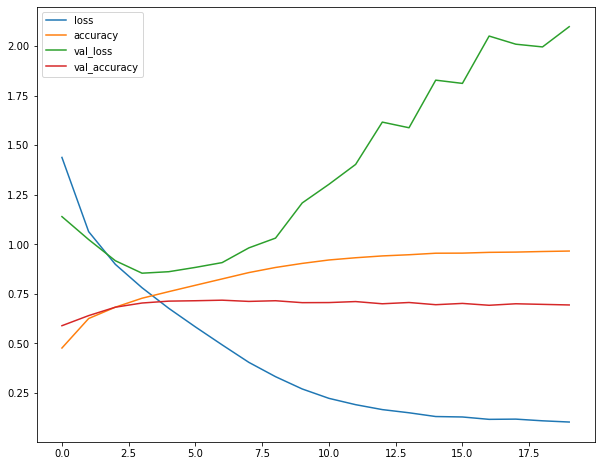

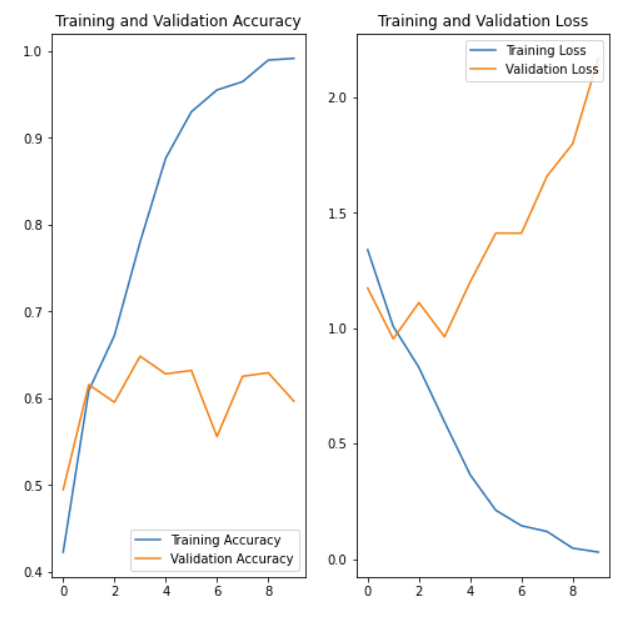

pd.DataFrame(history.history).plot.line(figsize=(10,8)) # validation loss가 증가하는 지점부터 overfitting이 시작된다 (정규화)
pd.DataFrame(history.history).plot.line(figsize=(10,8)) # validation loss가 증가하는 지점부터 overfitting이 시작된다 (정규화 X)
Flower Datasets
tf.keras.utils.get_file("flower_photos","https://storage.googleapis.com/download.tensorflow.org/example_images/flower_photos.tgz")
data = tf.keras.preprocessing.image_dataset_from_directory('flower_photos/')
# Found 3670 files belonging to 5 classes.
data # tf.data.Dataset
# <BatchDataset shapes: ((None, 256, 256, 3), (None,)), types: (tf.float32, tf.int32)>
idg = tf.keras.preprocessing.image.ImageDataGenerator()
idg.flow_from_directory('flower_photos/') # raw data를 클래스별로 모아 두면 한번에 바꾸는 것을 지원한다 (하나의 array로 만들어줌)
# Found 3670 images belonging to 5 classes.
# <keras.preprocessing.image.DirectoryIterator at 0x7fee7a4b1390>
numpy와 tensor
Numpy와 tensor는 서로 호환이 된다
tensor로 사용하면 호환성은 떨어지지만 gpu나 tensorflow 내부의 기능을 극대화 할 수 있다
CLASSES = ('Car', 'Truck', 'Pedestrian', 'Cyclist')
labels_to_names_seq = {i:k for i, k in enumerate(CLASSES)}
labels_to_names_seq
# {0: 'Car', 1: 'Truck', 2: 'Pedestrian', 3: 'Cyclist'}
CLASSES = ('Car', 'Truck', 'Pedestrian', 'Cyclist')
cat2label = {k:i for i, k in enumerate(CLASSES)}
def get_detected_img(model, img_array, score_threshold=0.3, is_print=True):
# 인자로 들어온 image_array를 복사.
draw_img = img_array.copy()
bbox_color=(0, 255, 0)
text_color=(0, 0, 255)
# model과 image array를 입력 인자로 inference detection 수행하고 결과를 results로 받음.
# results는 80개의 2차원 array(shape=(오브젝트갯수, 5))를 가지는 list.
results = inference_detector(model, img_array)
# 80개의 array원소를 가지는 results 리스트를 loop를 돌면서 개별 2차원 array들을 추출하고 이를 기반으로 이미지 시각화
# results 리스트의 위치 index가 바로 COCO 매핑된 Class id. 여기서는 result_ind가 class id
# 개별 2차원 array에 오브젝트별 좌표와 class confidence score 값을 가짐.
for result_ind, result in enumerate(results):
# 개별 2차원 array의 row size가 0 이면 해당 Class id로 값이 없으므로 다음 loop로 진행.
if len(result) == 0:
continue
# 2차원 array에서 5번째 컬럼에 해당하는 값이 score threshold이며 이 값이 함수 인자로 들어온 score_threshold 보다 낮은 경우는 제외.
result_filtered = result[np.where(result[:, 4] > score_threshold)]
# 해당 클래스 별로 Detect된 여러개의 오브젝트 정보가 2차원 array에 담겨 있으며, 이 2차원 array를 row수만큼 iteration해서 개별 오브젝트의 좌표값 추출.
for i in range(len(result_filtered)):
# 좌상단, 우하단 좌표 추출.
left = int(result_filtered[i, 0])
top = int(result_filtered[i, 1])
right = int(result_filtered[i, 2])
bottom = int(result_filtered[i, 3])
caption = "{}: {:.4f}".format(labels_to_names_seq[result_ind], result_filtered[i, 4])
cv2.rectangle(draw_img, (left, top), (right, bottom), color=bbox_color, thickness=2)
cv2.putText(draw_img, caption, (int(left), int(top - 7)), cv2.FONT_HERSHEY_SIMPLEX, 0.37, text_color, 1)
if is_print:
print(caption)
return draw_img
import time
def do_detected_video(model, input_path, output_path, score_threshold, do_print=True):
cap = cv2.VideoCapture(input_path)
codec = cv2.VideoWriter_fourcc(*'XVID')
vid_size = (round(cap.get(cv2.CAP_PROP_FRAME_WIDTH)),round(cap.get(cv2.CAP_PROP_FRAME_HEIGHT)))
vid_fps = cap.get(cv2.CAP_PROP_FPS)
vid_writer = cv2.VideoWriter(output_path, codec, vid_fps, vid_size)
frame_cnt = int(cap.get(cv2.CAP_PROP_FRAME_COUNT))
print('총 Frame 갯수:', frame_cnt)
btime = time.time()
while True:
hasFrame, img_frame = cap.read()
if not hasFrame:
print('더 이상 처리할 frame이 없습니다.')
break
stime = time.time()
img_frame = get_detected_img(model, img_frame, score_threshold=score_threshold, is_print=False)
if do_print:
print('frame별 detection 수행 시간:', round(time.time() - stime, 4))
vid_writer.write(img_frame)
# end of while loop
vid_writer.release()
cap.release()
print('최종 detection 완료 수행 시간:', round(time.time() - btime, 4))
do_detected_video(model, '/content/data/the_rock_chase.mp4', '/content/data/the_rock_chase_out1.mp4', score_threshold=0.4, do_print=True)
# 총 Frame 갯수: 503
frame별 detection 수행 시간: 0.1158
frame별 detection 수행 시간: 0.0974
frame별 detection 수행 시간: 0.0929
frame별 detection 수행 시간: 0.102
frame별 detection 수행 시간: 0.1017
frame별 detection 수행 시간: 0.1063
frame별 detection 수행 시간: 0.0948
frame별 detection 수행 시간: 0.1055
frame별 detection 수행 시간: 0.0973
frame별 detection 수행 시간: 0.1025
frame별 detection 수행 시간: 0.096
frame별 detection 수행 시간: 0.0997
frame별 detection 수행 시간: 0.0982
frame별 detection 수행 시간: 0.1127
frame별 detection 수행 시간: 0.0943
frame별 detection 수행 시간: 0.0982
frame별 detection 수행 시간: 0.0944
frame별 detection 수행 시간: 0.0942
frame별 detection 수행 시간: 0.0966
frame별 detection 수행 시간: 0.0955
frame별 detection 수행 시간: 0.0945
frame별 detection 수행 시간: 0.0959
frame별 detection 수행 시간: 0.1024
frame별 detection 수행 시간: 0.0985
frame별 detection 수행 시간: 0.095
frame별 detection 수행 시간: 0.1022
frame별 detection 수행 시간: 0.0937
frame별 detection 수행 시간: 0.096
frame별 detection 수행 시간: 0.0951
frame별 detection 수행 시간: 0.0958
frame별 detection 수행 시간: 0.1023
frame별 detection 수행 시간: 0.0971
frame별 detection 수행 시간: 0.0946
frame별 detection 수행 시간: 0.0951
frame별 detection 수행 시간: 0.0938
frame별 detection 수행 시간: 0.0946
frame별 detection 수행 시간: 0.0938
frame별 detection 수행 시간: 0.0965
frame별 detection 수행 시간: 0.0942
frame별 detection 수행 시간: 0.0954
frame별 detection 수행 시간: 0.0955
frame별 detection 수행 시간: 0.0991
frame별 detection 수행 시간: 0.0997
frame별 detection 수행 시간: 0.0964
frame별 detection 수행 시간: 0.0919
frame별 detection 수행 시간: 0.0965
frame별 detection 수행 시간: 0.0943
frame별 detection 수행 시간: 0.0968
frame별 detection 수행 시간: 0.0928
frame별 detection 수행 시간: 0.0995
frame별 detection 수행 시간: 0.0998
frame별 detection 수행 시간: 0.0933
frame별 detection 수행 시간: 0.0931
frame별 detection 수행 시간: 0.095
frame별 detection 수행 시간: 0.103
frame별 detection 수행 시간: 0.1082
frame별 detection 수행 시간: 0.091
frame별 detection 수행 시간: 0.0943
frame별 detection 수행 시간: 0.0926
frame별 detection 수행 시간: 0.0929
frame별 detection 수행 시간: 0.092
frame별 detection 수행 시간: 0.094
frame별 detection 수행 시간: 0.0917
frame별 detection 수행 시간: 0.0964
frame별 detection 수행 시간: 0.092
frame별 detection 수행 시간: 0.0937
frame별 detection 수행 시간: 0.0936
frame별 detection 수행 시간: 0.1009
frame별 detection 수행 시간: 0.0951
frame별 detection 수행 시간: 0.0944
frame별 detection 수행 시간: 0.0985
frame별 detection 수행 시간: 0.0968
frame별 detection 수행 시간: 0.092
frame별 detection 수행 시간: 0.0959
frame별 detection 수행 시간: 0.093
frame별 detection 수행 시간: 0.0946
frame별 detection 수행 시간: 0.0926
frame별 detection 수행 시간: 0.0954
frame별 detection 수행 시간: 0.0925
frame별 detection 수행 시간: 0.0987
frame별 detection 수행 시간: 0.0951
frame별 detection 수행 시간: 0.0944
frame별 detection 수행 시간: 0.0927
frame별 detection 수행 시간: 0.0974
frame별 detection 수행 시간: 0.0932
frame별 detection 수행 시간: 0.1043
frame별 detection 수행 시간: 0.0947
frame별 detection 수행 시간: 0.1006
frame별 detection 수행 시간: 0.0955
frame별 detection 수행 시간: 0.1049
frame별 detection 수행 시간: 0.0924
frame별 detection 수행 시간: 0.0951
frame별 detection 수행 시간: 0.0959
frame별 detection 수행 시간: 0.0939
frame별 detection 수행 시간: 0.094
frame별 detection 수행 시간: 0.0949
frame별 detection 수행 시간: 0.0943
frame별 detection 수행 시간: 0.0952
frame별 detection 수행 시간: 0.0974
frame별 detection 수행 시간: 0.1047
frame별 detection 수행 시간: 0.0944
frame별 detection 수행 시간: 0.0977
frame별 detection 수행 시간: 0.0941
frame별 detection 수행 시간: 0.0965
frame별 detection 수행 시간: 0.0927
frame별 detection 수행 시간: 0.0957
frame별 detection 수행 시간: 0.0938
frame별 detection 수행 시간: 0.0997
frame별 detection 수행 시간: 0.0979
frame별 detection 수행 시간: 0.0972
frame별 detection 수행 시간: 0.0942
frame별 detection 수행 시간: 0.0992
frame별 detection 수행 시간: 0.1034
frame별 detection 수행 시간: 0.1029
frame별 detection 수행 시간: 0.0943
frame별 detection 수행 시간: 0.0946
frame별 detection 수행 시간: 0.0934
frame별 detection 수행 시간: 0.0966
frame별 detection 수행 시간: 0.0917
frame별 detection 수행 시간: 0.1
frame별 detection 수행 시간: 0.0979
frame별 detection 수행 시간: 0.0953
frame별 detection 수행 시간: 0.0932
frame별 detection 수행 시간: 0.0946
frame별 detection 수행 시간: 0.0906
frame별 detection 수행 시간: 0.0941
frame별 detection 수행 시간: 0.094
frame별 detection 수행 시간: 0.0969
frame별 detection 수행 시간: 0.0925
frame별 detection 수행 시간: 0.0967
frame별 detection 수행 시간: 0.0919
frame별 detection 수행 시간: 0.0934
frame별 detection 수행 시간: 0.0924
frame별 detection 수행 시간: 0.0924
frame별 detection 수행 시간: 0.093
frame별 detection 수행 시간: 0.093
frame별 detection 수행 시간: 0.0965
frame별 detection 수행 시간: 0.1
frame별 detection 수행 시간: 0.092
frame별 detection 수행 시간: 0.0928
frame별 detection 수행 시간: 0.0921
frame별 detection 수행 시간: 0.0941
frame별 detection 수행 시간: 0.092
frame별 detection 수행 시간: 0.093
frame별 detection 수행 시간: 0.0954
frame별 detection 수행 시간: 0.0941
frame별 detection 수행 시간: 0.093
frame별 detection 수행 시간: 0.0937
frame별 detection 수행 시간: 0.0919
frame별 detection 수행 시간: 0.0961
frame별 detection 수행 시간: 0.0928
frame별 detection 수행 시간: 0.0944
frame별 detection 수행 시간: 0.0905
frame별 detection 수행 시간: 0.0912
frame별 detection 수행 시간: 0.0927
frame별 detection 수행 시간: 0.0935
frame별 detection 수행 시간: 0.0958
frame별 detection 수행 시간: 0.0936
frame별 detection 수행 시간: 0.0922
frame별 detection 수행 시간: 0.0926
frame별 detection 수행 시간: 0.0928
frame별 detection 수행 시간: 0.0944
frame별 detection 수행 시간: 0.0954
frame별 detection 수행 시간: 0.0939
frame별 detection 수행 시간: 0.0924
frame별 detection 수행 시간: 0.0951
frame별 detection 수행 시간: 0.0972
frame별 detection 수행 시간: 0.0925
frame별 detection 수행 시간: 0.0948
frame별 detection 수행 시간: 0.0924
frame별 detection 수행 시간: 0.0932
frame별 detection 수행 시간: 0.0925
frame별 detection 수행 시간: 0.09
frame별 detection 수행 시간: 0.097
frame별 detection 수행 시간: 0.0927
frame별 detection 수행 시간: 0.0955
frame별 detection 수행 시간: 0.0926
frame별 detection 수행 시간: 0.0947
frame별 detection 수행 시간: 0.0917
frame별 detection 수행 시간: 0.1029
frame별 detection 수행 시간: 0.0912
frame별 detection 수행 시간: 0.0941
frame별 detection 수행 시간: 0.0921
frame별 detection 수행 시간: 0.0967
frame별 detection 수행 시간: 0.0906
frame별 detection 수행 시간: 0.0945
frame별 detection 수행 시간: 0.0954
frame별 detection 수행 시간: 0.0952
frame별 detection 수행 시간: 0.0904
frame별 detection 수행 시간: 0.0942
frame별 detection 수행 시간: 0.0905
frame별 detection 수행 시간: 0.092
frame별 detection 수행 시간: 0.0902
frame별 detection 수행 시간: 0.0927
frame별 detection 수행 시간: 0.0963
frame별 detection 수행 시간: 0.0989
frame별 detection 수행 시간: 0.0917
frame별 detection 수행 시간: 0.0952
frame별 detection 수행 시간: 0.0965
frame별 detection 수행 시간: 0.0905
frame별 detection 수행 시간: 0.0933
frame별 detection 수행 시간: 0.0906
frame별 detection 수행 시간: 0.0981
frame별 detection 수행 시간: 0.0928
frame별 detection 수행 시간: 0.0951
frame별 detection 수행 시간: 0.0904
frame별 detection 수행 시간: 0.094
frame별 detection 수행 시간: 0.0909
frame별 detection 수행 시간: 0.0961
frame별 detection 수행 시간: 0.0936
frame별 detection 수행 시간: 0.0978
frame별 detection 수행 시간: 0.0919
frame별 detection 수행 시간: 0.0939
frame별 detection 수행 시간: 0.0961
frame별 detection 수행 시간: 0.0935
frame별 detection 수행 시간: 0.0955
frame별 detection 수행 시간: 0.0954
frame별 detection 수행 시간: 0.0906
frame별 detection 수행 시간: 0.0933
frame별 detection 수행 시간: 0.0939
frame별 detection 수행 시간: 0.0898
frame별 detection 수행 시간: 0.0893
frame별 detection 수행 시간: 0.0923
frame별 detection 수행 시간: 0.0999
frame별 detection 수행 시간: 0.0909
frame별 detection 수행 시간: 0.1059
frame별 detection 수행 시간: 0.0957
frame별 detection 수행 시간: 0.0941
frame별 detection 수행 시간: 0.0931
frame별 detection 수행 시간: 0.1005
frame별 detection 수행 시간: 0.0927
frame별 detection 수행 시간: 0.0943
frame별 detection 수행 시간: 0.0919
frame별 detection 수행 시간: 0.0951
frame별 detection 수행 시간: 0.0944
frame별 detection 수행 시간: 0.0967
frame별 detection 수행 시간: 0.0912
frame별 detection 수행 시간: 0.097
frame별 detection 수행 시간: 0.0902
frame별 detection 수행 시간: 0.0934
frame별 detection 수행 시간: 0.0907
frame별 detection 수행 시간: 0.0956
frame별 detection 수행 시간: 0.0933
frame별 detection 수행 시간: 0.0953
frame별 detection 수행 시간: 0.0946
frame별 detection 수행 시간: 0.0965
frame별 detection 수행 시간: 0.0934
frame별 detection 수행 시간: 0.0965
frame별 detection 수행 시간: 0.0944
frame별 detection 수행 시간: 0.0994
frame별 detection 수행 시간: 0.0919
frame별 detection 수행 시간: 0.0974
frame별 detection 수행 시간: 0.097
frame별 detection 수행 시간: 0.0927
frame별 detection 수행 시간: 0.0999
frame별 detection 수행 시간: 0.0935
frame별 detection 수행 시간: 0.0943
frame별 detection 수행 시간: 0.0939
frame별 detection 수행 시간: 0.0933
frame별 detection 수행 시간: 0.0974
frame별 detection 수행 시간: 0.0938
frame별 detection 수행 시간: 0.1012
frame별 detection 수행 시간: 0.0964
frame별 detection 수행 시간: 0.0978
frame별 detection 수행 시간: 0.0947
frame별 detection 수행 시간: 0.0949
frame별 detection 수행 시간: 0.0926
frame별 detection 수행 시간: 0.0935
frame별 detection 수행 시간: 0.0955
frame별 detection 수행 시간: 0.093
frame별 detection 수행 시간: 0.0963
frame별 detection 수행 시간: 0.0936
frame별 detection 수행 시간: 0.096
frame별 detection 수행 시간: 0.1008
frame별 detection 수행 시간: 0.0964
frame별 detection 수행 시간: 0.0937
frame별 detection 수행 시간: 0.0947
frame별 detection 수행 시간: 0.094
frame별 detection 수행 시간: 0.095
frame별 detection 수행 시간: 0.0929
frame별 detection 수행 시간: 0.0951
frame별 detection 수행 시간: 0.0943
frame별 detection 수행 시간: 0.1009
frame별 detection 수행 시간: 0.0948
frame별 detection 수행 시간: 0.0917
frame별 detection 수행 시간: 0.0931
frame별 detection 수행 시간: 0.0954
frame별 detection 수행 시간: 0.0934
frame별 detection 수행 시간: 0.0932
frame별 detection 수행 시간: 0.0961
frame별 detection 수행 시간: 0.0972
frame별 detection 수행 시간: 0.0919
frame별 detection 수행 시간: 0.0939
frame별 detection 수행 시간: 0.0942
frame별 detection 수행 시간: 0.1005
frame별 detection 수행 시간: 0.0942
frame별 detection 수행 시간: 0.0954
frame별 detection 수행 시간: 0.0967
frame별 detection 수행 시간: 0.0998
frame별 detection 수행 시간: 0.0939
frame별 detection 수행 시간: 0.0947
frame별 detection 수행 시간: 0.0921
frame별 detection 수행 시간: 0.0945
frame별 detection 수행 시간: 0.0932
frame별 detection 수행 시간: 0.0934
frame별 detection 수행 시간: 0.0913
frame별 detection 수행 시간: 0.0918
frame별 detection 수행 시간: 0.0949
frame별 detection 수행 시간: 0.0956
frame별 detection 수행 시간: 0.0991
frame별 detection 수행 시간: 0.096
frame별 detection 수행 시간: 0.1012
frame별 detection 수행 시간: 0.0939
frame별 detection 수행 시간: 0.0942
frame별 detection 수행 시간: 0.0942
frame별 detection 수행 시간: 0.0942
frame별 detection 수행 시간: 0.095
frame별 detection 수행 시간: 0.0947
frame별 detection 수행 시간: 0.0949
frame별 detection 수행 시간: 0.0959
frame별 detection 수행 시간: 0.0977
frame별 detection 수행 시간: 0.0962
frame별 detection 수행 시간: 0.1024
frame별 detection 수행 시간: 0.0923
frame별 detection 수행 시간: 0.0971
frame별 detection 수행 시간: 0.0973
frame별 detection 수행 시간: 0.0992
frame별 detection 수행 시간: 0.093
frame별 detection 수행 시간: 0.0991
frame별 detection 수행 시간: 0.0937
frame별 detection 수행 시간: 0.0988
frame별 detection 수행 시간: 0.0942
frame별 detection 수행 시간: 0.0993
frame별 detection 수행 시간: 0.0968
frame별 detection 수행 시간: 0.1021
frame별 detection 수행 시간: 0.0939
frame별 detection 수행 시간: 0.0995
frame별 detection 수행 시간: 0.0964
frame별 detection 수행 시간: 0.1024
frame별 detection 수행 시간: 0.0987
frame별 detection 수행 시간: 0.1017
frame별 detection 수행 시간: 0.0925
frame별 detection 수행 시간: 0.0965
frame별 detection 수행 시간: 0.0926
frame별 detection 수행 시간: 0.1026
frame별 detection 수행 시간: 0.096
frame별 detection 수행 시간: 0.0942
frame별 detection 수행 시간: 0.09
frame별 detection 수행 시간: 0.0969
frame별 detection 수행 시간: 0.0927
frame별 detection 수행 시간: 0.1002
frame별 detection 수행 시간: 0.0901
frame별 detection 수행 시간: 0.0919
frame별 detection 수행 시간: 0.0915
frame별 detection 수행 시간: 0.0916
frame별 detection 수행 시간: 0.0924
frame별 detection 수행 시간: 0.0936
frame별 detection 수행 시간: 0.0928
frame별 detection 수행 시간: 0.0996
frame별 detection 수행 시간: 0.0977
frame별 detection 수행 시간: 0.095
frame별 detection 수행 시간: 0.0898
frame별 detection 수행 시간: 0.0935
frame별 detection 수행 시간: 0.0925
frame별 detection 수행 시간: 0.0944
frame별 detection 수행 시간: 0.0925
frame별 detection 수행 시간: 0.0941
frame별 detection 수행 시간: 0.0926
frame별 detection 수행 시간: 0.0942
frame별 detection 수행 시간: 0.093
frame별 detection 수행 시간: 0.0987
frame별 detection 수행 시간: 0.0941
frame별 detection 수행 시간: 0.0945
frame별 detection 수행 시간: 0.0919
frame별 detection 수행 시간: 0.0923
frame별 detection 수행 시간: 0.0902
frame별 detection 수행 시간: 0.0915
frame별 detection 수행 시간: 0.0931
frame별 detection 수행 시간: 0.093
frame별 detection 수행 시간: 0.0948
frame별 detection 수행 시간: 0.0928
frame별 detection 수행 시간: 0.0919
frame별 detection 수행 시간: 0.0945
frame별 detection 수행 시간: 0.091
frame별 detection 수행 시간: 0.0941
frame별 detection 수행 시간: 0.0919
frame별 detection 수행 시간: 0.0974
frame별 detection 수행 시간: 0.093
frame별 detection 수행 시간: 0.0985
frame별 detection 수행 시간: 0.0918
frame별 detection 수행 시간: 0.0916
frame별 detection 수행 시간: 0.0901
frame별 detection 수행 시간: 0.0938
frame별 detection 수행 시간: 0.0941
frame별 detection 수행 시간: 0.093
frame별 detection 수행 시간: 0.0909
frame별 detection 수행 시간: 0.0931
frame별 detection 수행 시간: 0.1007
frame별 detection 수행 시간: 0.0966
frame별 detection 수행 시간: 0.0917
frame별 detection 수행 시간: 0.0912
frame별 detection 수행 시간: 0.0926
frame별 detection 수행 시간: 0.092
frame별 detection 수행 시간: 0.0937
frame별 detection 수행 시간: 0.0898
frame별 detection 수행 시간: 0.0884
frame별 detection 수행 시간: 0.0916
frame별 detection 수행 시간: 0.0936
frame별 detection 수행 시간: 0.0885
frame별 detection 수행 시간: 0.0902
frame별 detection 수행 시간: 0.089
frame별 detection 수행 시간: 0.0985
frame별 detection 수행 시간: 0.0942
frame별 detection 수행 시간: 0.0959
frame별 detection 수행 시간: 0.0947
frame별 detection 수행 시간: 0.0982
frame별 detection 수행 시간: 0.093
frame별 detection 수행 시간: 0.0959
frame별 detection 수행 시간: 0.0922
frame별 detection 수행 시간: 0.0925
frame별 detection 수행 시간: 0.0932
frame별 detection 수행 시간: 0.0955
frame별 detection 수행 시간: 0.0912
frame별 detection 수행 시간: 0.096
frame별 detection 수행 시간: 0.0933
frame별 detection 수행 시간: 0.1
frame별 detection 수행 시간: 0.0987
frame별 detection 수행 시간: 0.1007
frame별 detection 수행 시간: 0.097
frame별 detection 수행 시간: 0.098
frame별 detection 수행 시간: 0.0934
frame별 detection 수행 시간: 0.0985
frame별 detection 수행 시간: 0.0926
frame별 detection 수행 시간: 0.0973
frame별 detection 수행 시간: 0.0918
frame별 detection 수행 시간: 0.0914
frame별 detection 수행 시간: 0.0931
frame별 detection 수행 시간: 0.0991
frame별 detection 수행 시간: 0.0922
frame별 detection 수행 시간: 0.095
frame별 detection 수행 시간: 0.0935
frame별 detection 수행 시간: 0.0954
frame별 detection 수행 시간: 0.0908
frame별 detection 수행 시간: 0.0938
frame별 detection 수행 시간: 0.0935
frame별 detection 수행 시간: 0.0921
frame별 detection 수행 시간: 0.0967
frame별 detection 수행 시간: 0.0933
frame별 detection 수행 시간: 0.0896
frame별 detection 수행 시간: 0.0989
frame별 detection 수행 시간: 0.092
frame별 detection 수행 시간: 0.097
frame별 detection 수행 시간: 0.0936
frame별 detection 수행 시간: 0.0992
frame별 detection 수행 시간: 0.0935
frame별 detection 수행 시간: 0.0937
frame별 detection 수행 시간: 0.0952
frame별 detection 수행 시간: 0.0937
frame별 detection 수행 시간: 0.0906
frame별 detection 수행 시간: 0.1034
frame별 detection 수행 시간: 0.0936
frame별 detection 수행 시간: 0.0929
frame별 detection 수행 시간: 0.09
frame별 detection 수행 시간: 0.0968
frame별 detection 수행 시간: 0.0935
frame별 detection 수행 시간: 0.0939
frame별 detection 수행 시간: 0.0935
frame별 detection 수행 시간: 0.0941
frame별 detection 수행 시간: 0.0921
frame별 detection 수행 시간: 0.0952
frame별 detection 수행 시간: 0.0941
frame별 detection 수행 시간: 0.0943
frame별 detection 수행 시간: 0.0941
frame별 detection 수행 시간: 0.0942
frame별 detection 수행 시간: 0.095
frame별 detection 수행 시간: 0.0945
frame별 detection 수행 시간: 0.0929
frame별 detection 수행 시간: 0.0965
frame별 detection 수행 시간: 0.0962
frame별 detection 수행 시간: 0.0951
frame별 detection 수행 시간: 0.0935
frame별 detection 수행 시간: 0.0958
frame별 detection 수행 시간: 0.0943
frame별 detection 수행 시간: 0.0944
frame별 detection 수행 시간: 0.093
frame별 detection 수행 시간: 0.0979
frame별 detection 수행 시간: 0.093
frame별 detection 수행 시간: 0.0941
frame별 detection 수행 시간: 0.0983
frame별 detection 수행 시간: 0.0967
frame별 detection 수행 시간: 0.0925
frame별 detection 수행 시간: 0.0944
frame별 detection 수행 시간: 0.0933
frame별 detection 수행 시간: 0.0942
frame별 detection 수행 시간: 0.0961
frame별 detection 수행 시간: 0.1017
frame별 detection 수행 시간: 0.096
frame별 detection 수행 시간: 0.0971
frame별 detection 수행 시간: 0.0948
frame별 detection 수행 시간: 0.095
frame별 detection 수행 시간: 0.0933
frame별 detection 수행 시간: 0.0952
frame별 detection 수행 시간: 0.0907
더 이상 처리할 frame이 없습니다.
최종 detection 완료 수행 시간: 53.1923
